Current Rating (Amps) | 120A |
Voltage Rating | 600V |
Wire Size Range | 4-6 AWG |
Operating Temperature Range | -4 to 221°F |
Material | Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs, Rubber |
Type | 2 Position Blade Type Power Housing Connector Non-Gendered |
Number of Positions | 2 |
Stacking Direction | Side to Side |
Mounting Type | Free Hanging (In-Line) |
Connect or disconnect over 10000 times with ease - thanks to our stainless steel spring.
Silver plating on copper terminals reduces resistance, supports stable voltage and current, and enhances electrical conductivity.

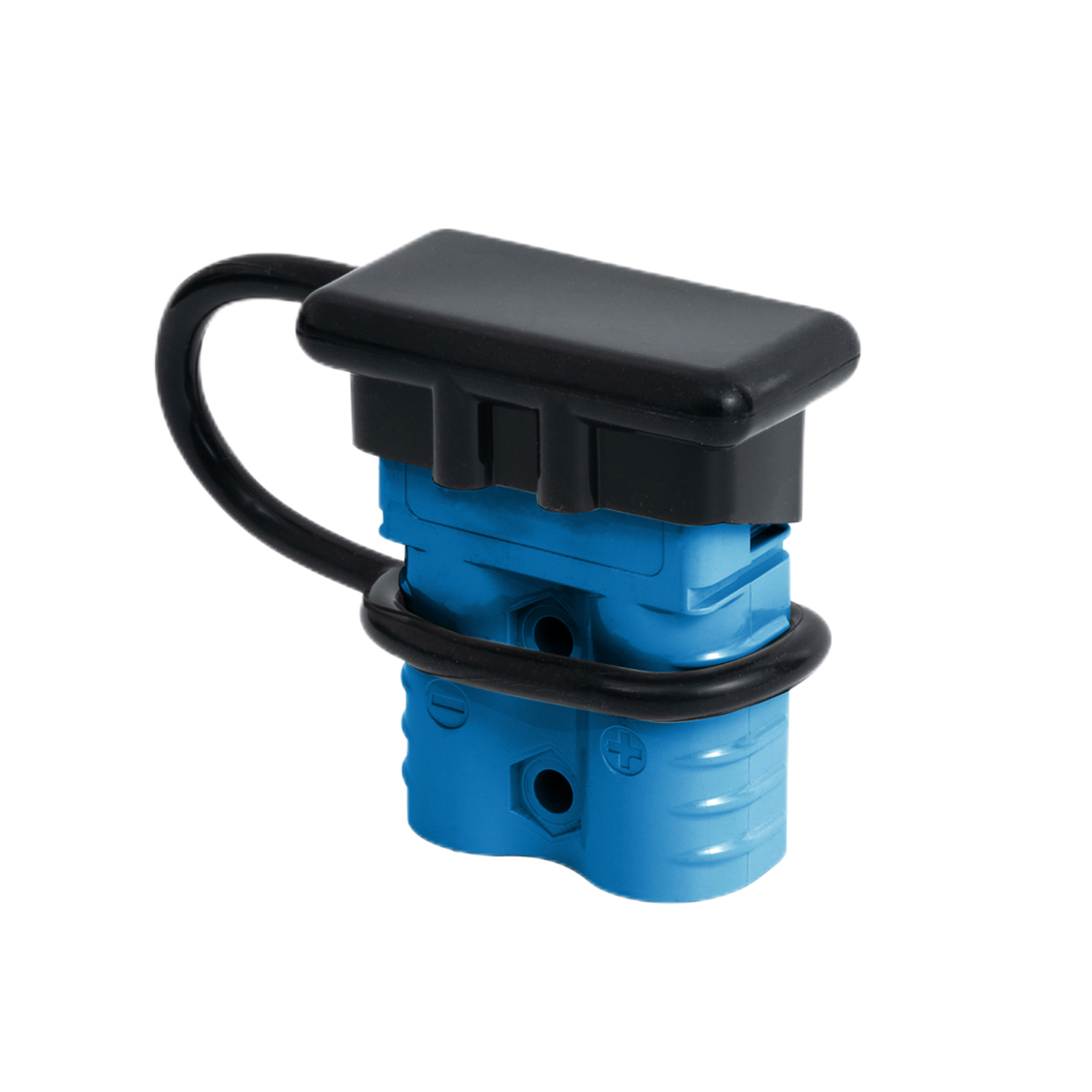

Prevents dust and dirt from entering the mating interface of the connector when unmated.
Our connectors feature mechanical keys that ensure secure mating with connectors of the same color. The textured surface on both sides of the plugs makes them not only easy to grip, but also provides added convenience.
Color-coded mechanical keys ensure seamless mating, with a genderless design that allows for simple 180-degree flipping.
1.Insert the stripped wire into copper terminal and crimp it with pliers.
2.When inserting the crimped copper terminal into housing, keep the front to be upside and the back to be held tightly by the stainless steel.
3.When inserting the crimped copper terminal into housing, keep the front to be upside and the back to be held tightly by the stainless steel.
