Current | 75A |
Voltage | 600V |
Wire Size Range | 6AWG, 8AWG, 10/12AWG |
Operating Temperature Range | -4 to 221°F |
Material | Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs |

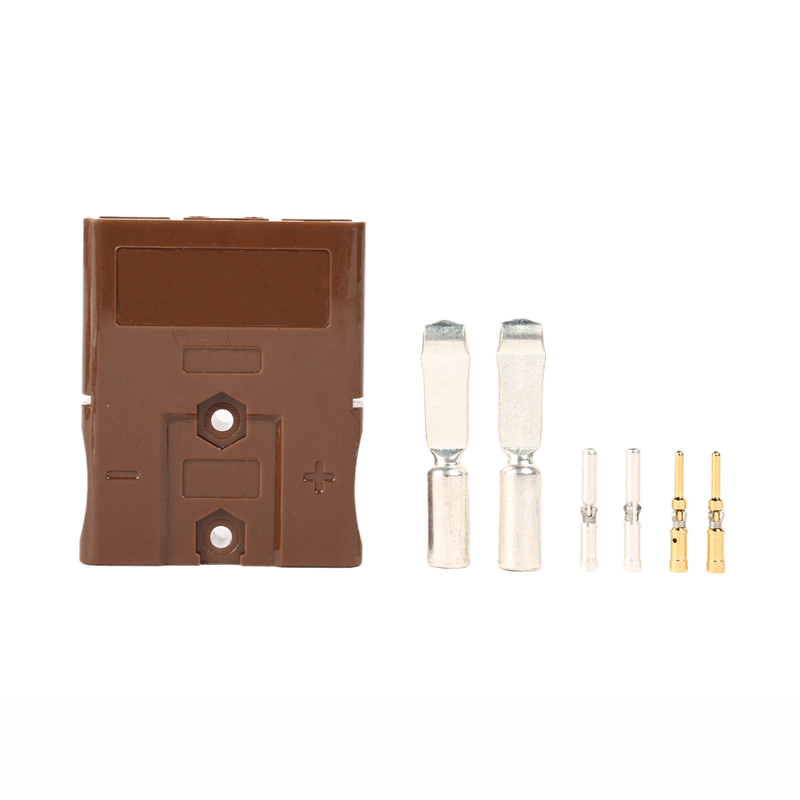

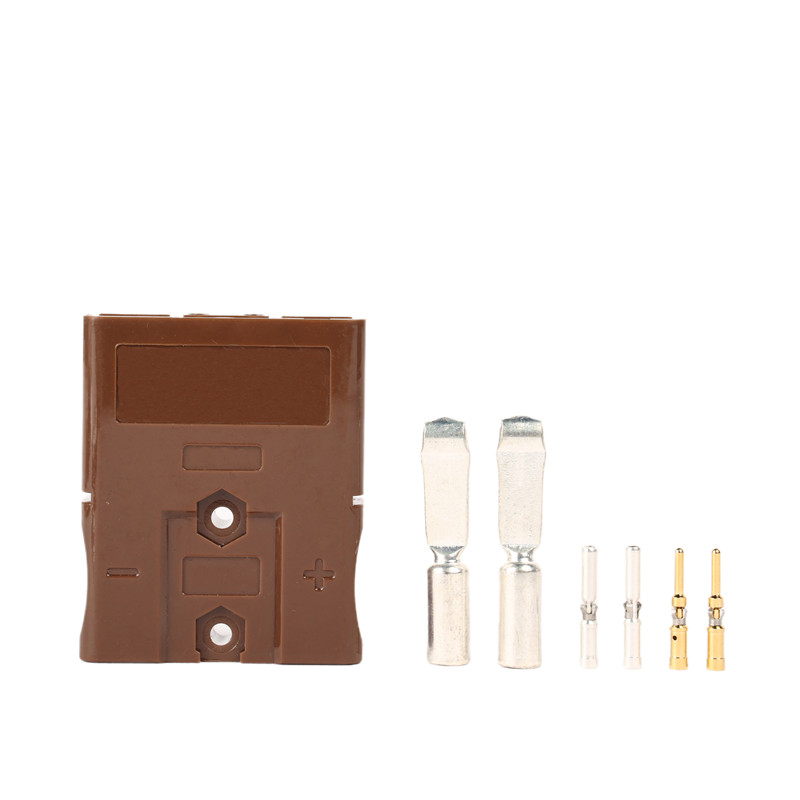

Wire-to-wire and wire-to-board configurations both provide power terminals rated up to 110 amps. It consists of one plastic housing, two power terminal, two signal silver pins(copper with silver plated), two singal gold pins(copper with gold plated).The auxiliary signal terminals rated up to 20 amps. It can safely be used in through panel applications and it can minimize potential contact with live circuits.

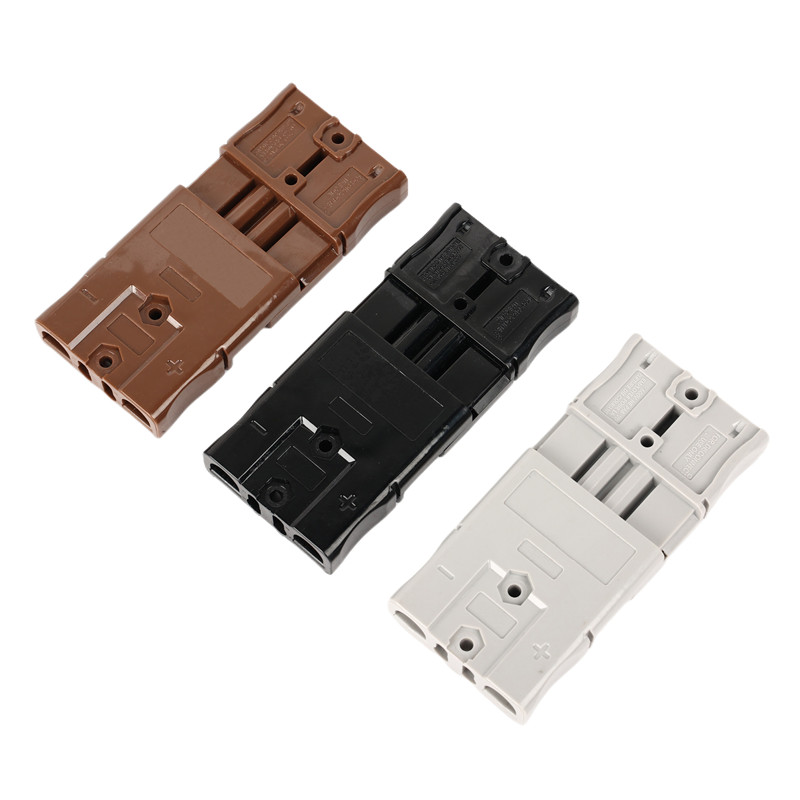

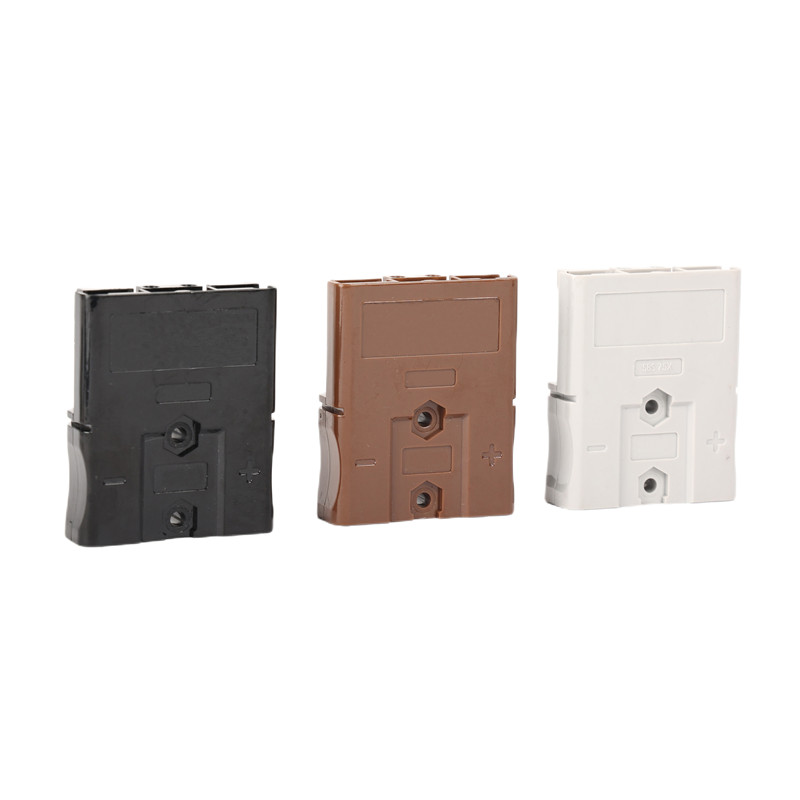

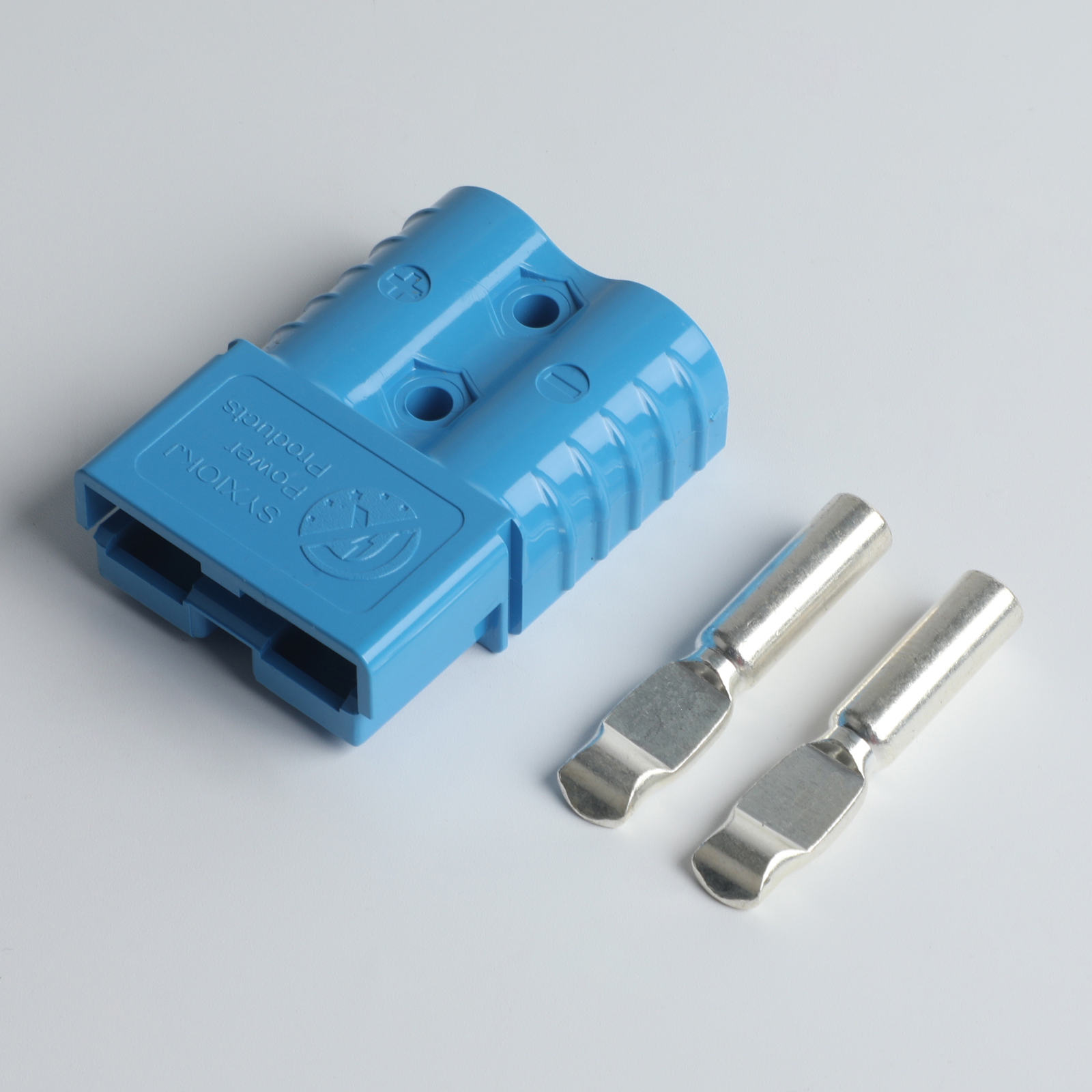

Genderless design mates with itself,which you just flip one 180 degrees and they will mate to each other. Mechanical keys are color-coded, which ensure connectors will only mate with connectors of the same color.

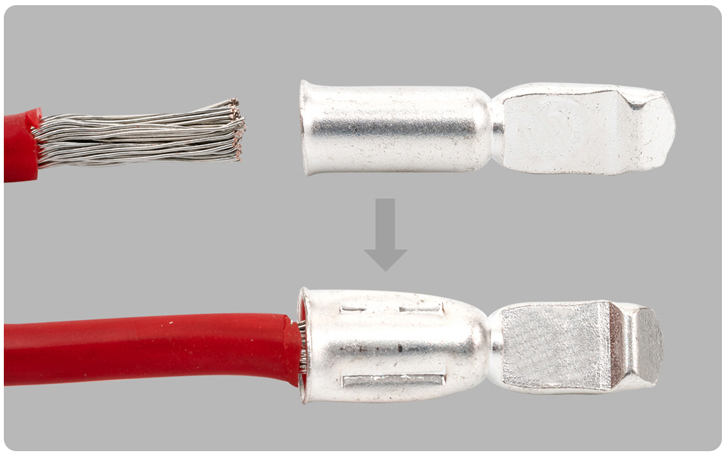

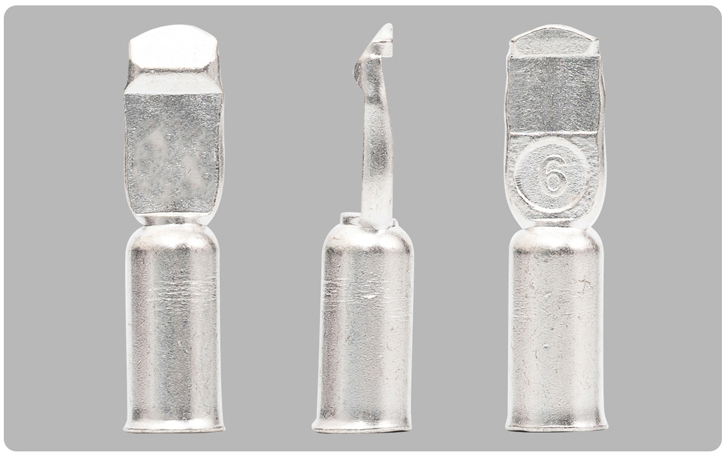

1.Insert the stripped wire into copper terminal and crimp it with pliers.

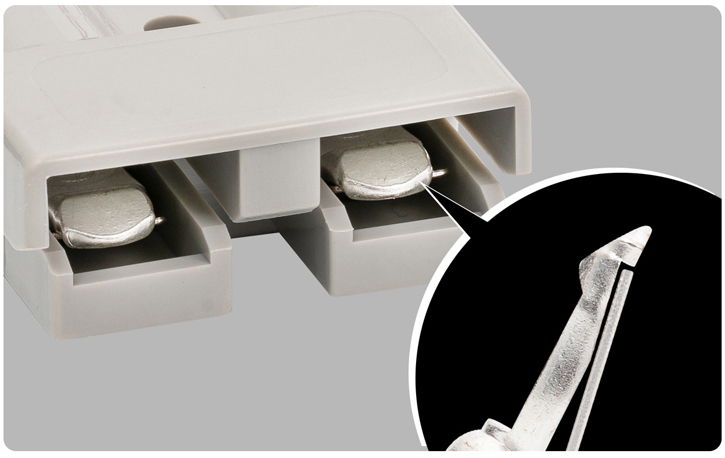

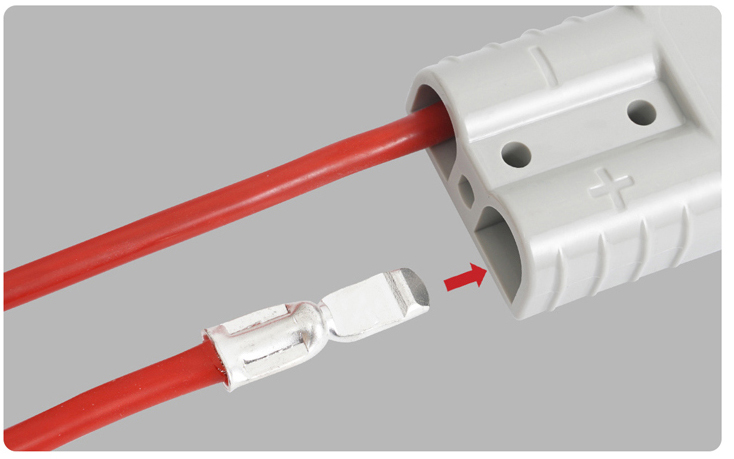

2.When inserting the crimped copper terminal into housing, keep the front to be upside and the back to be held tightly by the stainless steel.
3.When inserting the crimped copper terminal into housing, keep the front to be upside and the back to be held tightly by the stainless steel.
