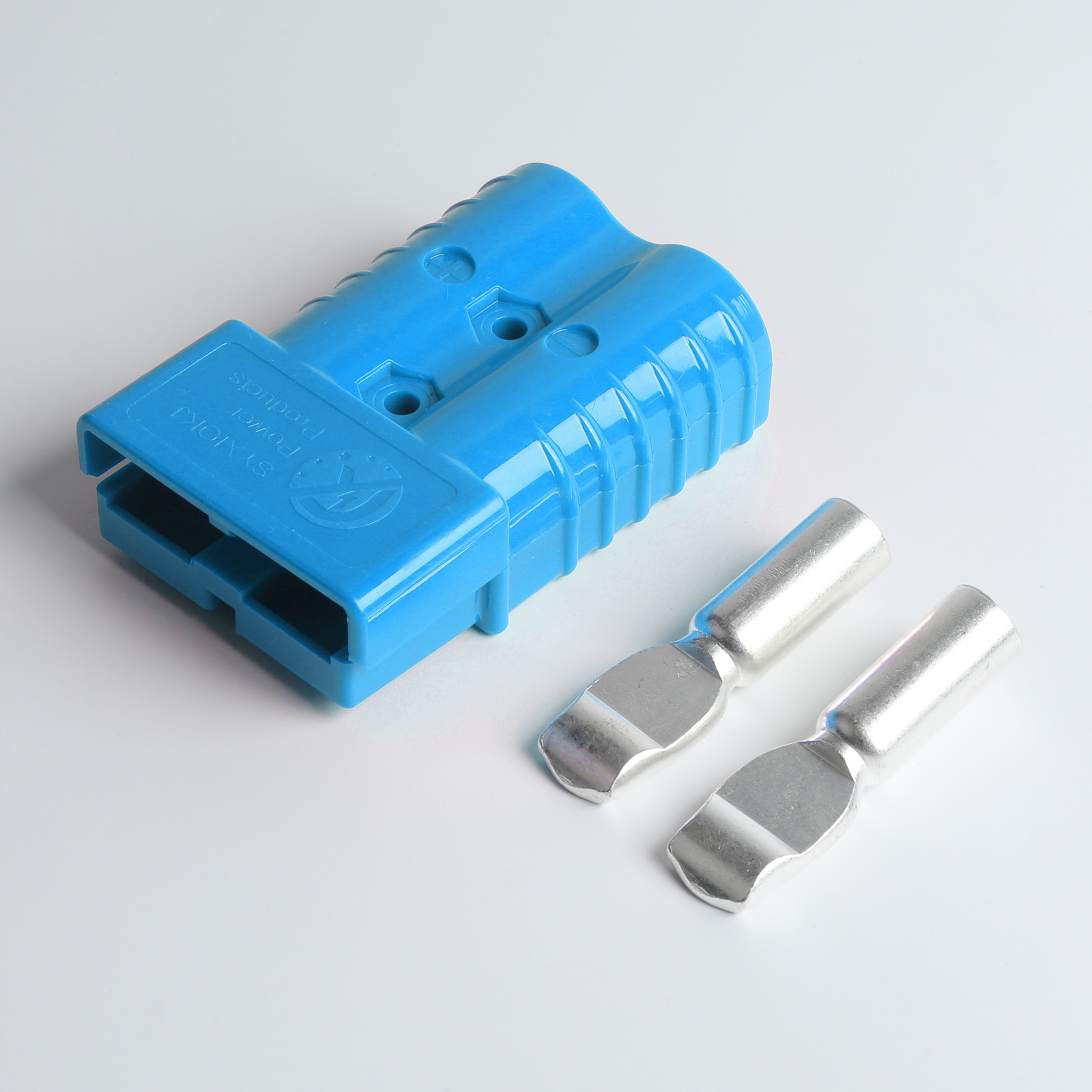

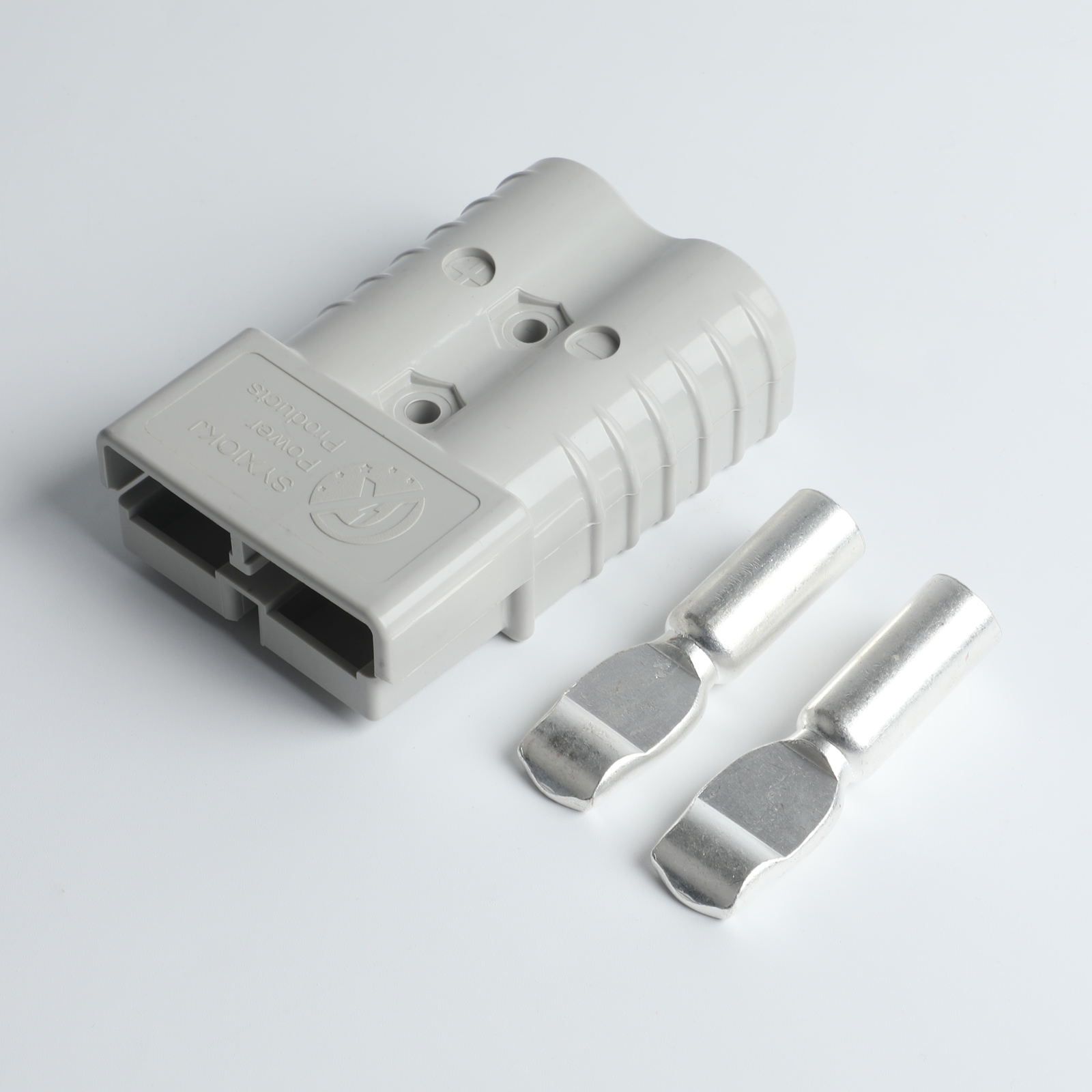

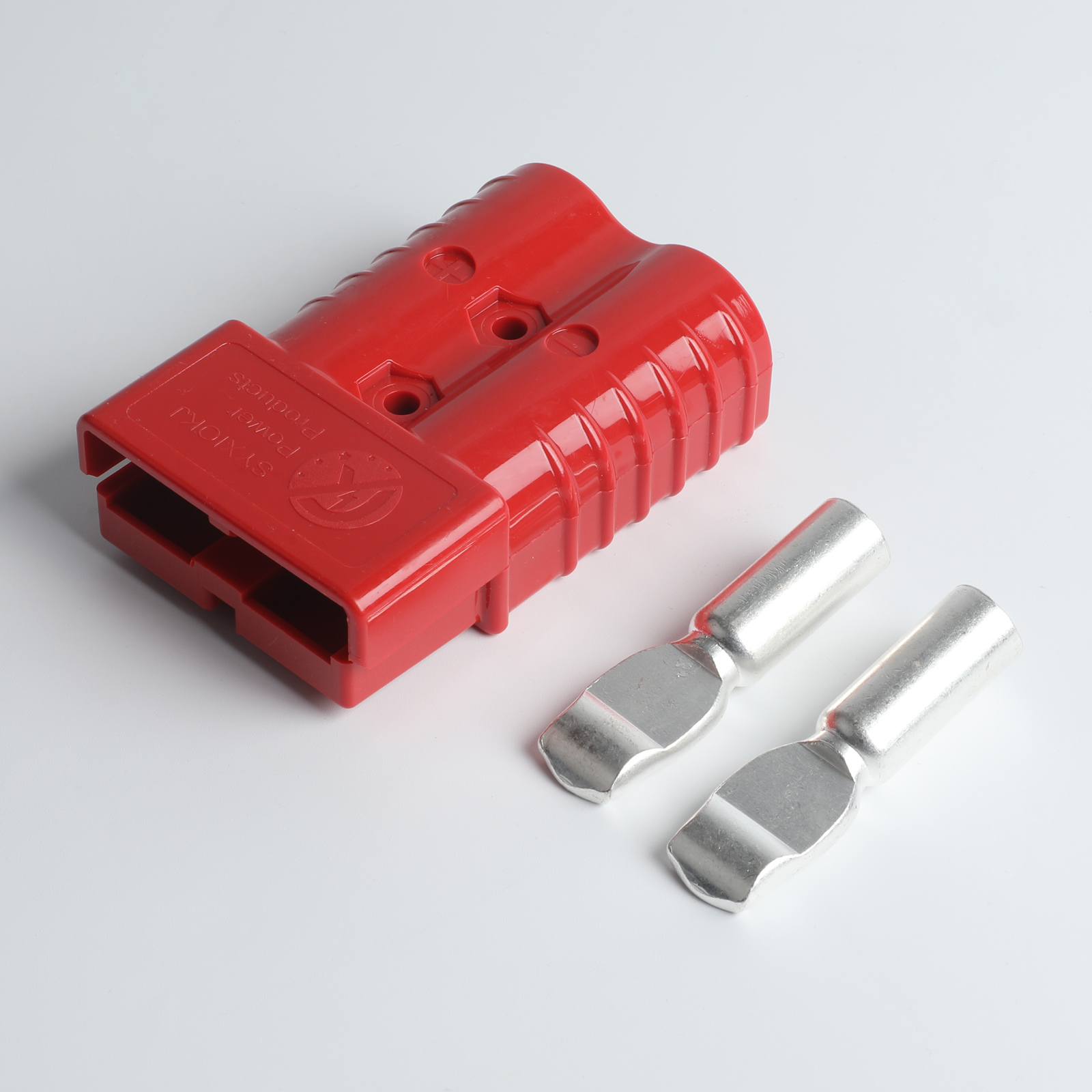

350A/600V Two Pole Battery Modular Power Connectors Battery Disconnect Connect Charging Plug

These connectors are used for connecting the battery packs to the solar or wind power systems, providing reliable and efficient energy storage solutions.In conclusion, muti-pole power connectors are essential components in lithium-ion battery packs due to their high current carrying capacity, secure connection, and robustness. They play a vital role in battery pack assembly, charging, and management, making them a popular choice in a variety of applications that require lithium-ion battery storage. Versatile, durable, and easy to use, multi-pole connectors, or power connectors, are extensively used in various industries. In the electronics sector, they are a popular choice for power distribution in high current and voltage circuits, as well as a connector between power sources and tools or machinery, ensuring fast and secure disconnection. Similarly, in the automotive industry, power connectors are integrated into a wide range of components, including battery connectors, alternators, and starters. They enable reliable engine power delivery and efficient management of the electrical system’s function and performance, ensuring peak vehicle operation, thanks to their superior performance, ease of use, and robustness. If you need an effective and user-friendly power distribution and interface system, power connectors are the ideal solution.

Send email to us

Product Detail

Product Tags

Spectifications

Current Rating (Amps)	350A
Voltage Rating	600V
Wire Size Range	2/0, 1/0AWG
Operating Temperature Range	-4 to 221°F
Material	Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs, Rubber
Housing Color	Gray, Red, Blue
Number of Contacts	2

Descriptions

Built-in stainless steel spring makes it possible to connect or disconnect over 10000 times.

Copper terminal is plated with silver to minimize electricity resistance and provide strong electrical conductivity to support stable voltage and current.

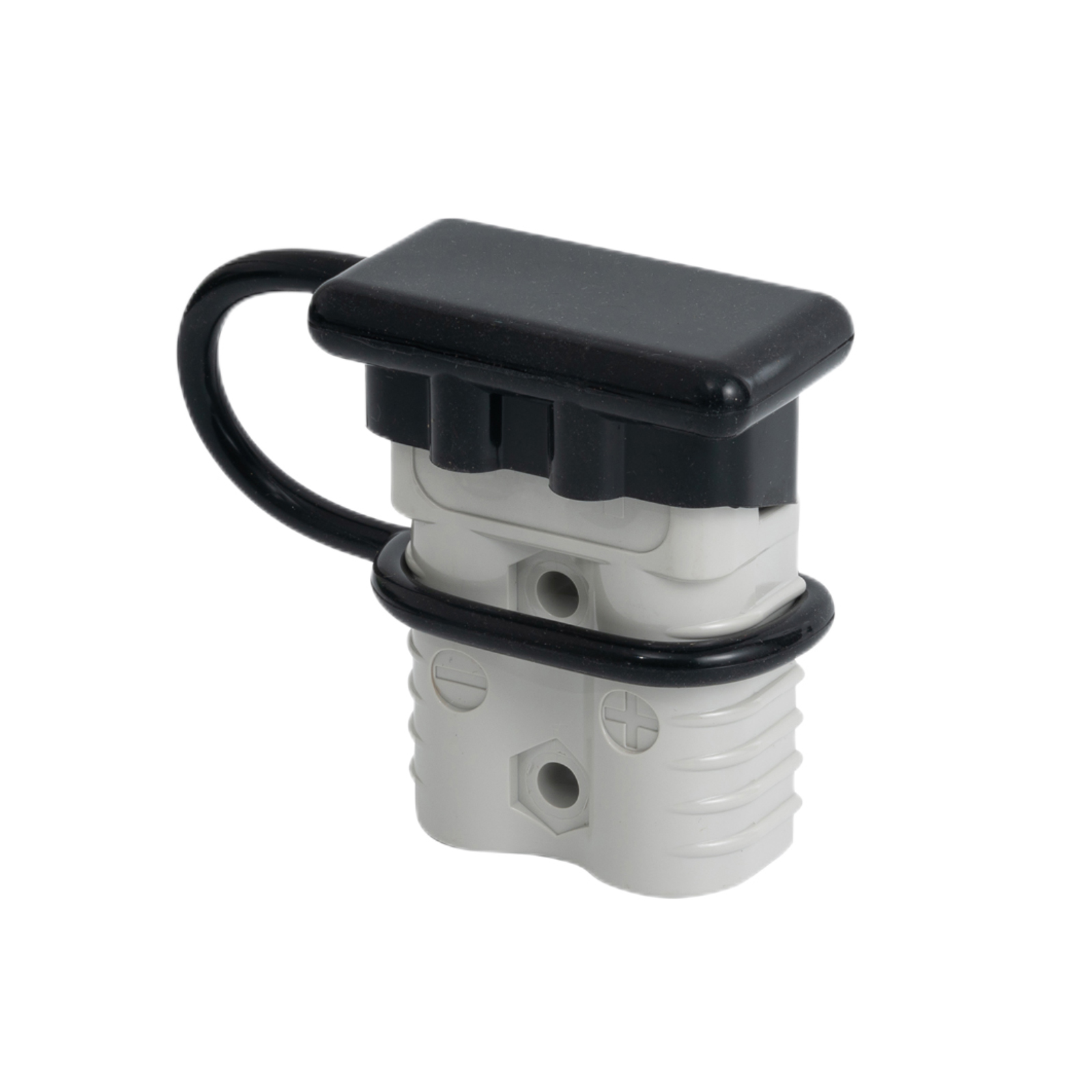

Prevents dust and dirt from entering the mating interface of the connector when unmated.

Mechanical keys ensure connectors will only mate with connectors of the same color. The striped texturing on both sides of the plugs makes it easier and helpful to grip.

Housing Color

Genderless design mates with itself，which you just flip one 180 degrees and they will mate to each other. Mechanical keys are color-coded, which ensure connectors will only mate with connectors of the same color.
