• 40A 600V Forklift Battery Charging Plug Power Connector

40A 600V Forklift Battery Charging Plug Power Connector

Connectors are a vital component in electrical systems. These connectors are used to create a secure and reliable connection between two electrical conductors. In simple terms, connectors work by joining two or more wires together to allow for electrical current to flow through the system. The importance of Connectors lies in their ability to provide a secure connection that is resistant to various types of environmental factors such as vibration, heat, moisture, and corrosion. This is particularly important in applications where there is high current flow or high voltage. This type of connectors are widely used in a variety of industries such as automotive, aerospace, and marine applications. These connectors have a locking mechanism that ensures they remain securely connected, and they are typically made from materials that are resistant to corrosion and can withstand high levels of temperature and pressure.


Product Detail

Product Tags

Spectifications

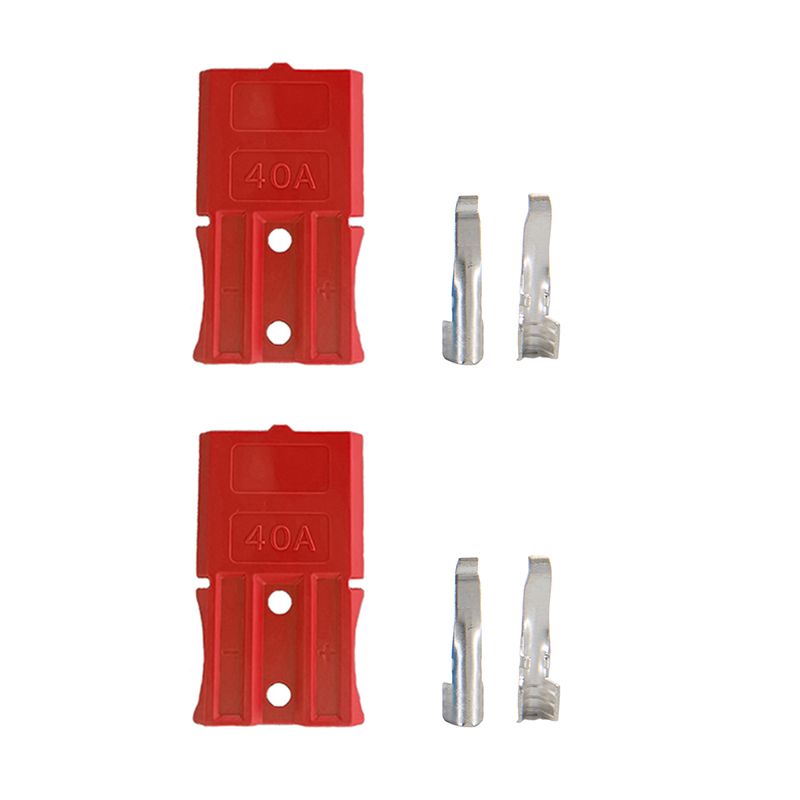

specifications
Shell Material PC
Terminal Material Copper with Silver plated
Cable Spec 4mm²-6mm²
Rated Current 40A
Rated Voltage 600V
Flammability UL94 V-0
Internal Chip 65Mn
Insulation Resistance 5000MΩ

housing color

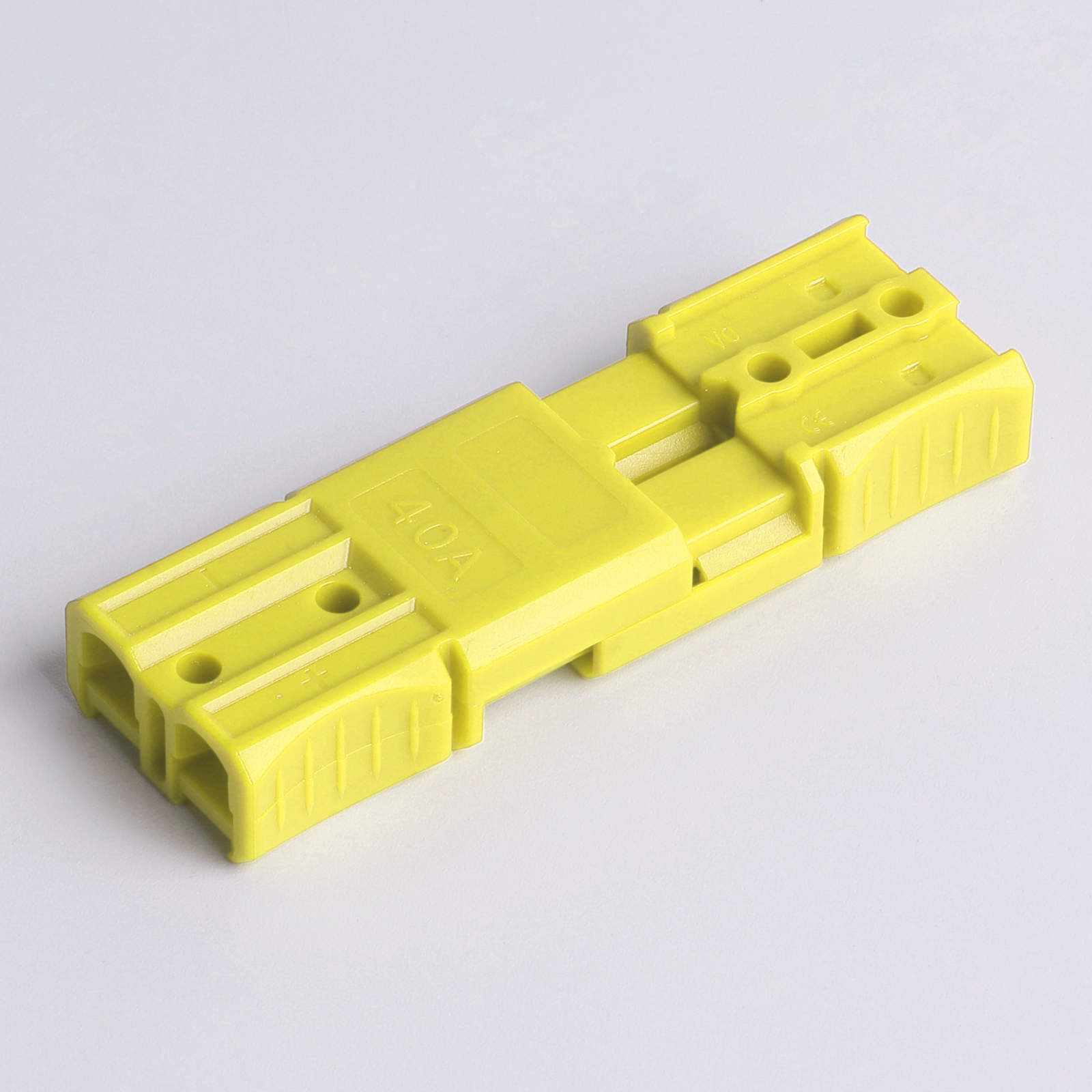

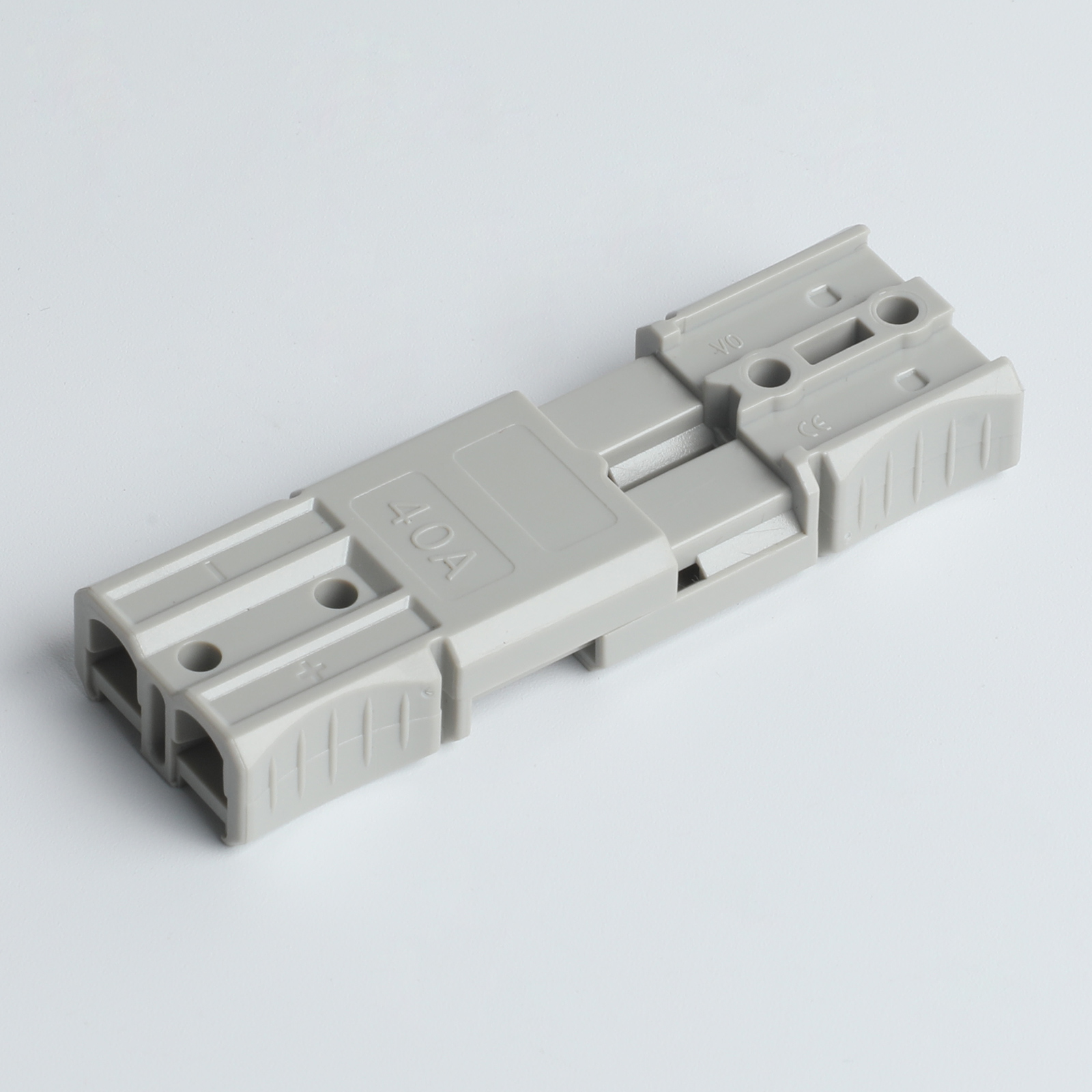

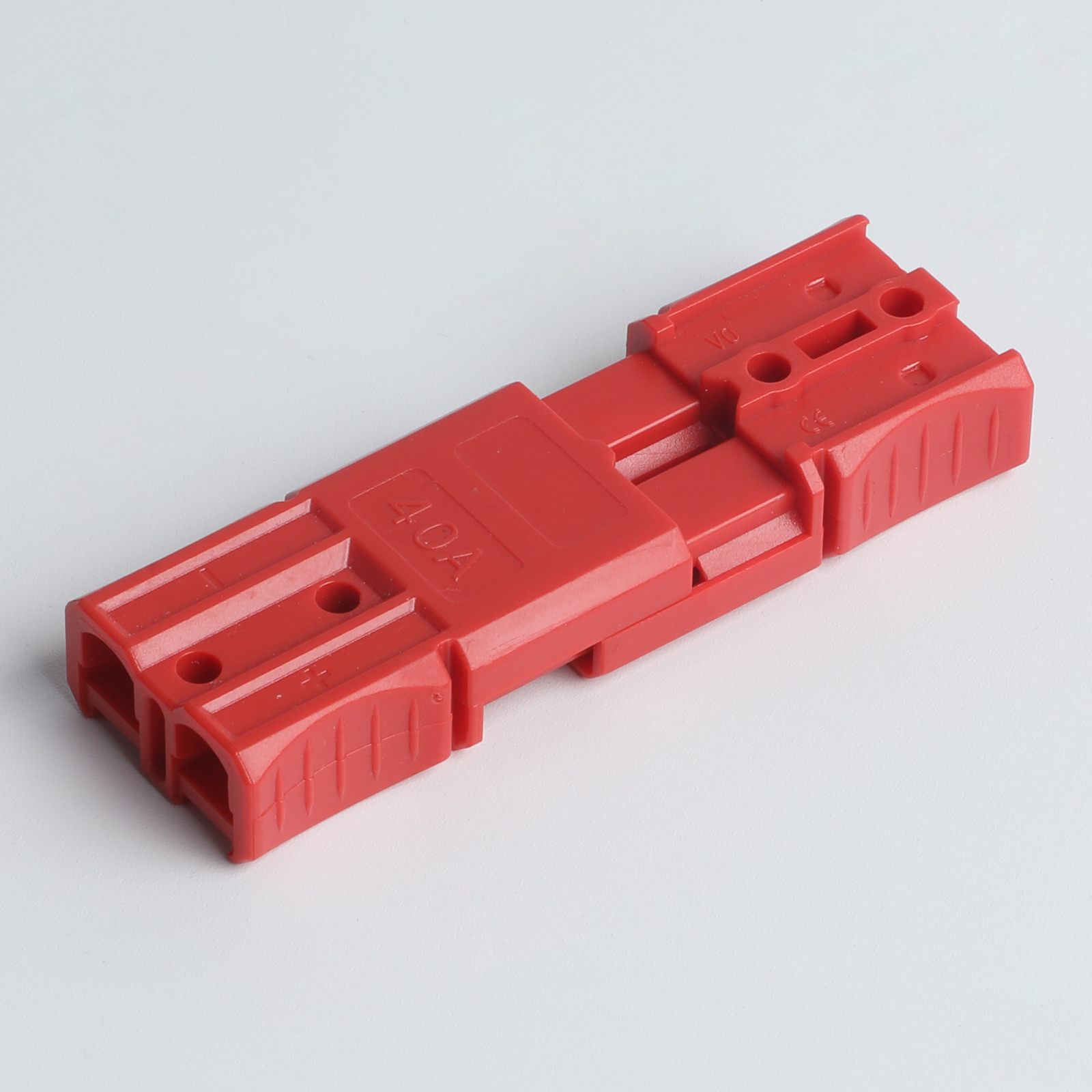

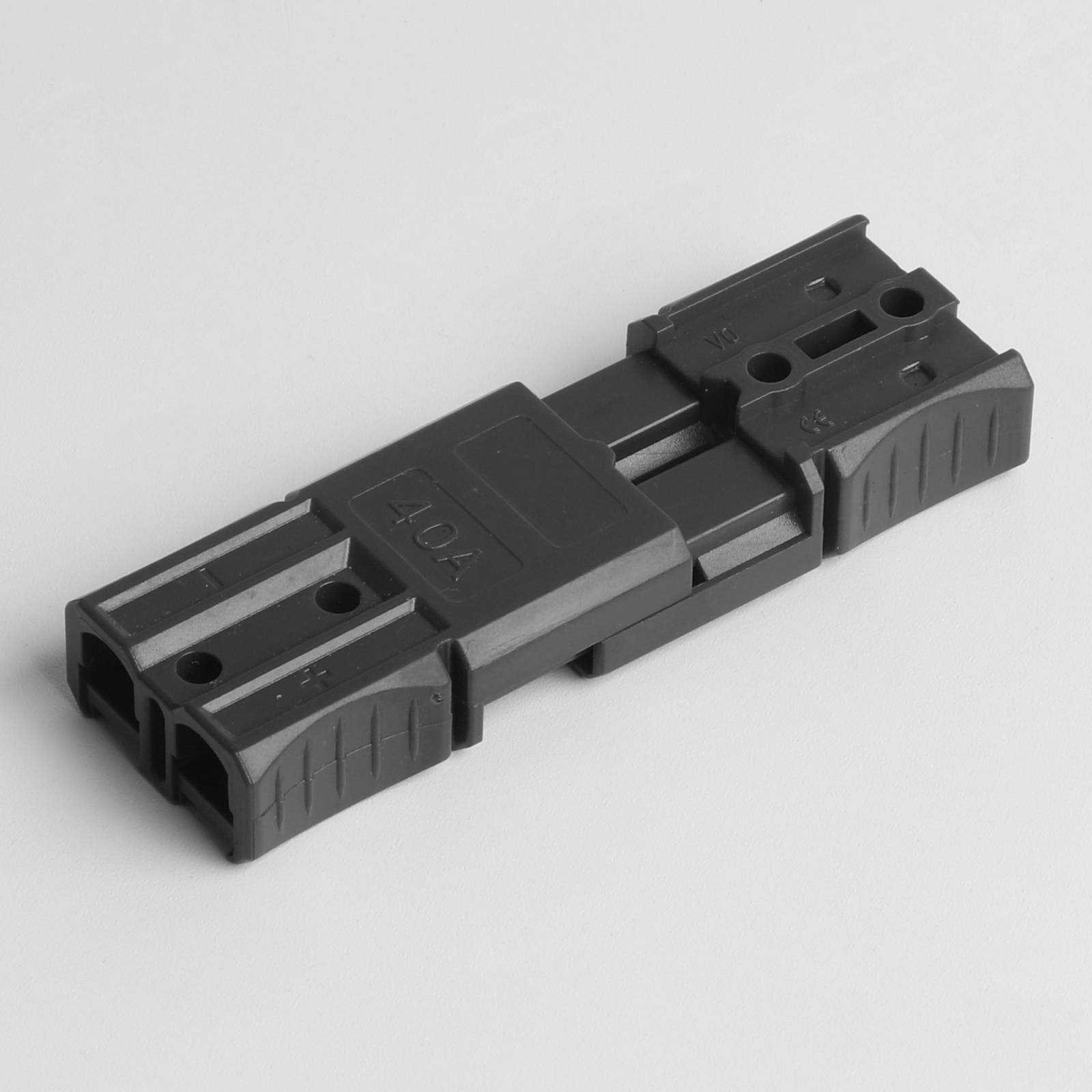

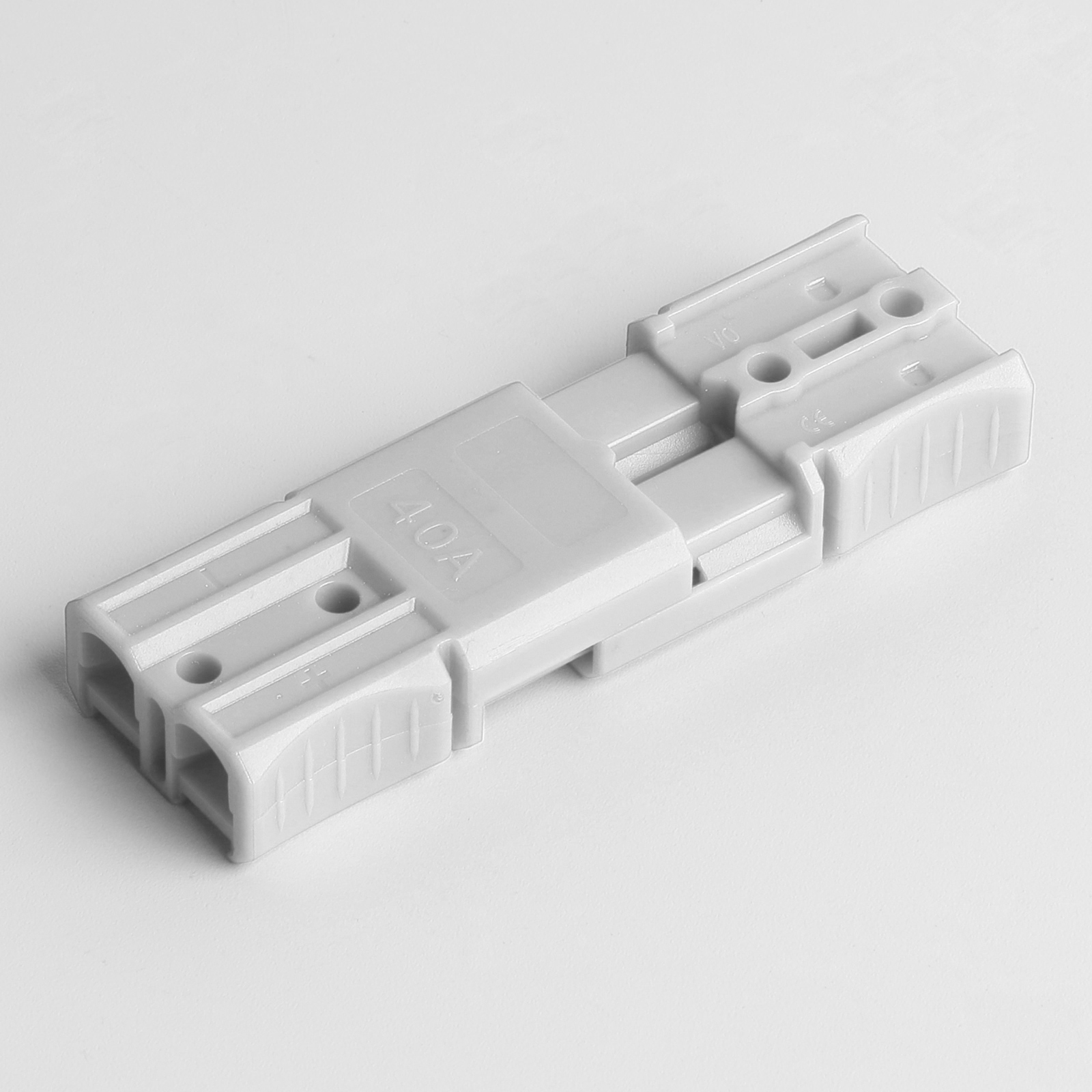

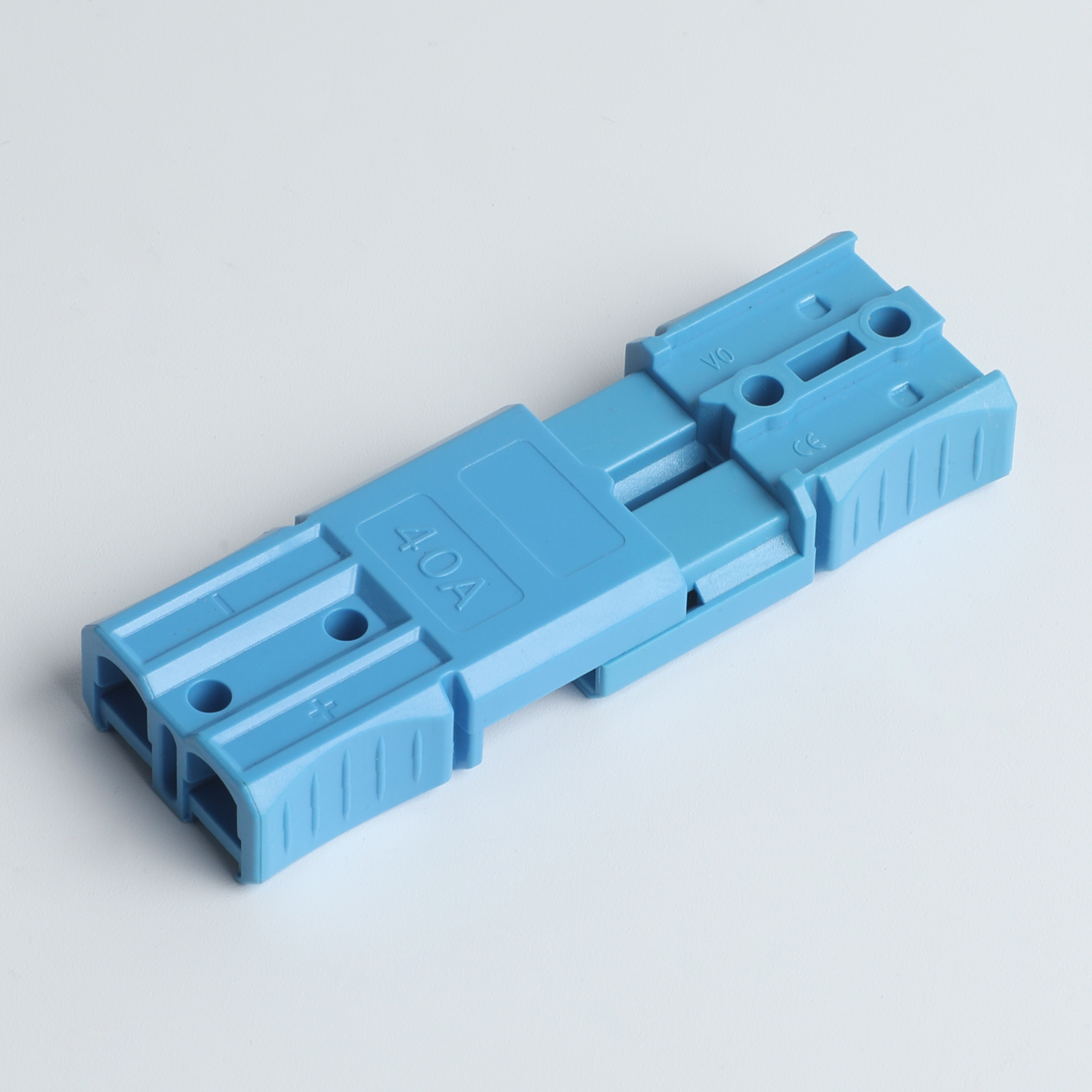

Genderless design mates with itself, which you just flip one 180 degrees and they will mate to each other. Mechanical keys are color-coded, which ensure connectors will only mate with connectors of the same color.
