• 120A Single Pole Power Connector Battery Disconnect Connect

120A Single Pole Power Connector Battery Disconnect Connect

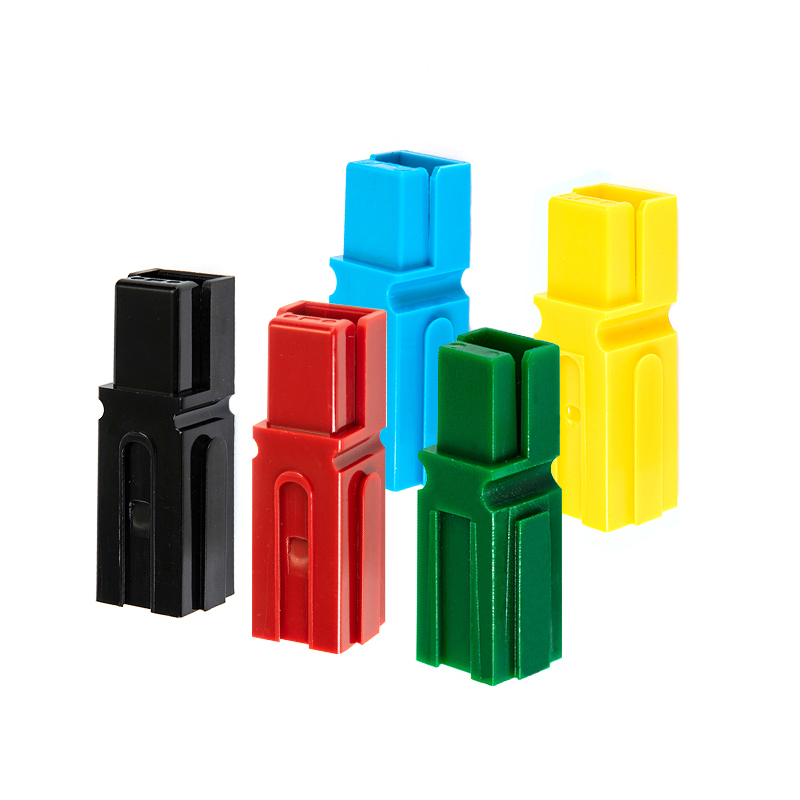

Looking for reliable and versatile 1 Pin 120A housings that can power your wire-to-wire, wire-to-board, and wire-to-busbar applications? Look no further than our high-quality housings that offer superior connectivity and security. Our 1 Pin 120A housings are designed to make your job easier by ensuring superb power delivery with wire sizes ranging from 16 to 4 AWG, providing power capabilities of up to 240 amps per pole. Additionally, our locking housings offer the capability to secure housings to each other and to mounting pads, making connections more secure and providing increased stability. These housings’ robust design is intended to withstand even the harshest environments, ensuring long-lasting durability and reducing the risk of downtime. As an added benefit, our housings meet stringent UL, CSA, RoHS, and REACH requirements. You can feel confident that you’re getting high-quality housings that exceed your regulatory compliance needs.  So if you’re looking for exceptional housings that offer superior performance, unmatched durability, and compliance with industry regulations, look no further than our 1 Pin 120A housings.


Product Detail

Product Tags

Spectifications

120A
Current 120A
Voltage 600V
Wire Size Range 6-4AWG
Operating Temperature Range -4 to 221°F
Material Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs

Product Description

Single pole connectors are a type of electrical connector that is commonly used in vehicles, solar power systems, and other applications that require a high DC voltage connection. This article will provide an introduction to single pole connectors, including their features, advantages, and applications.

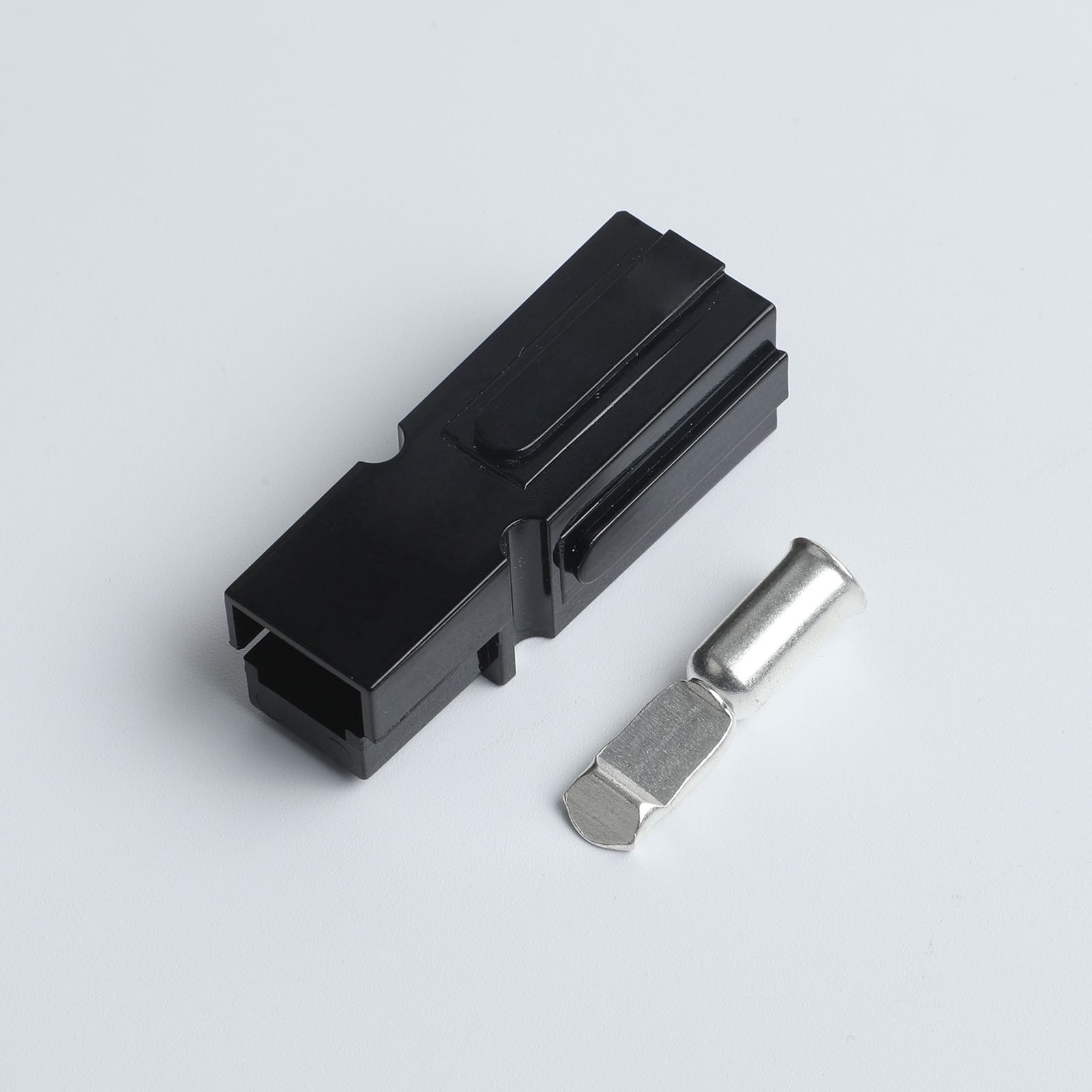

black

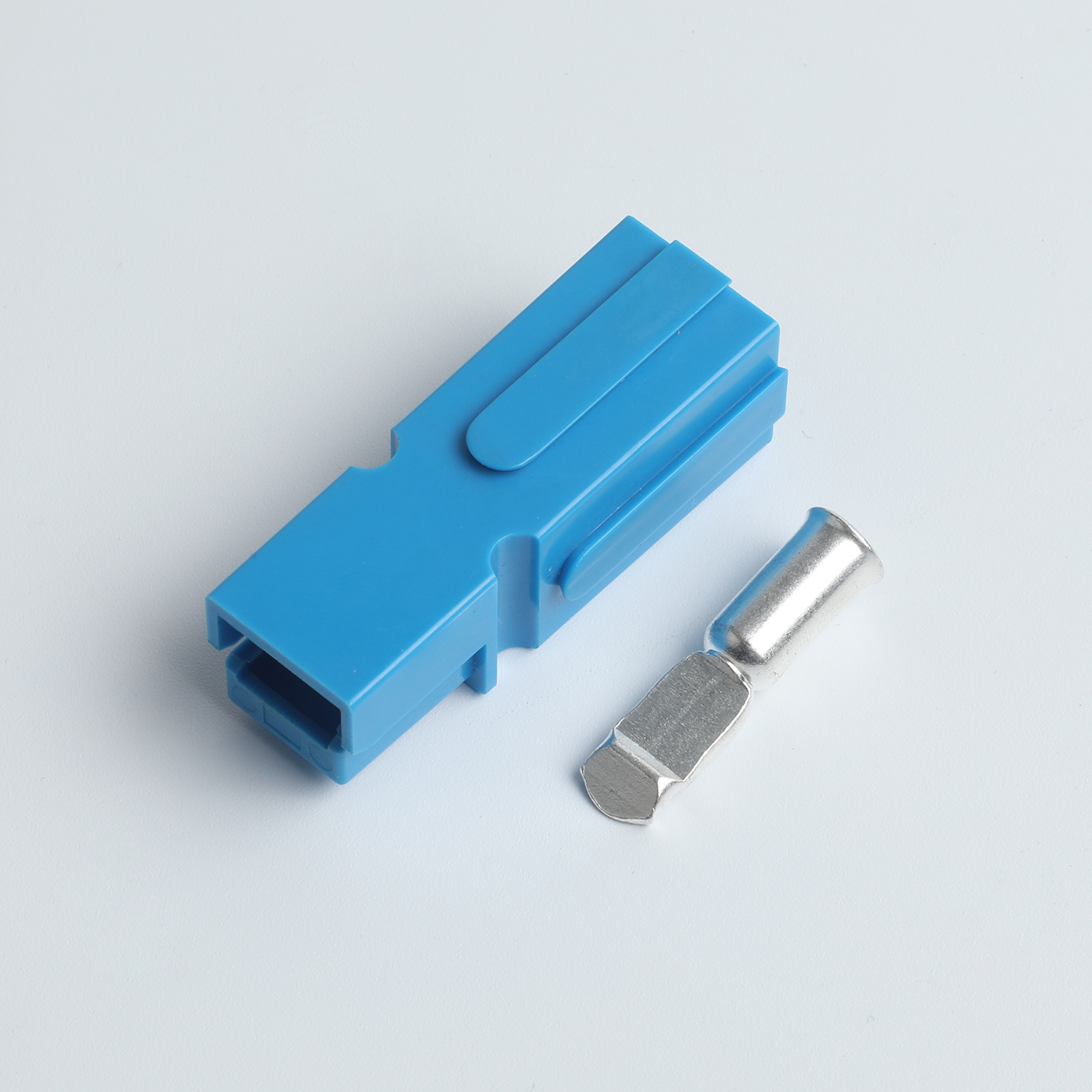

blue

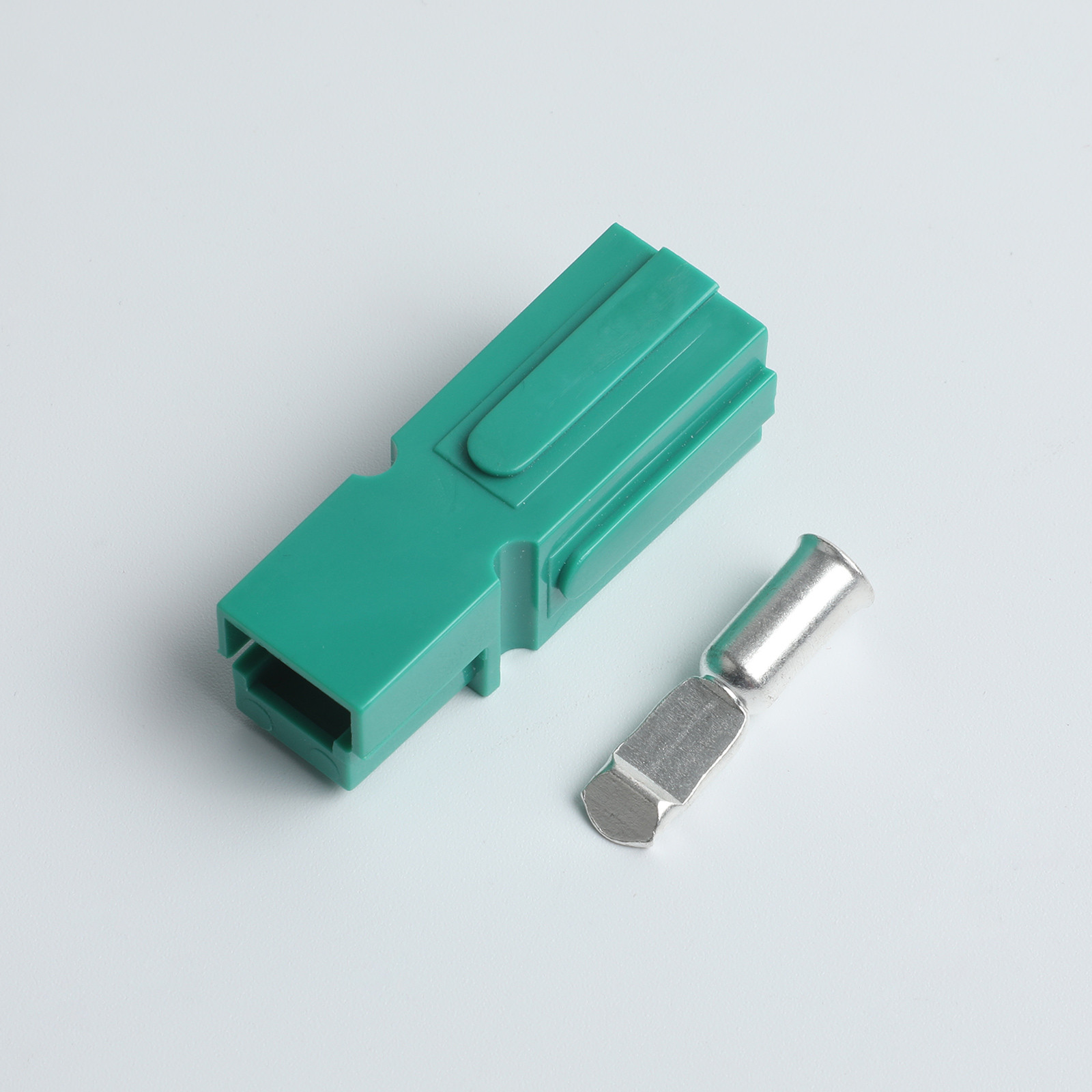

green

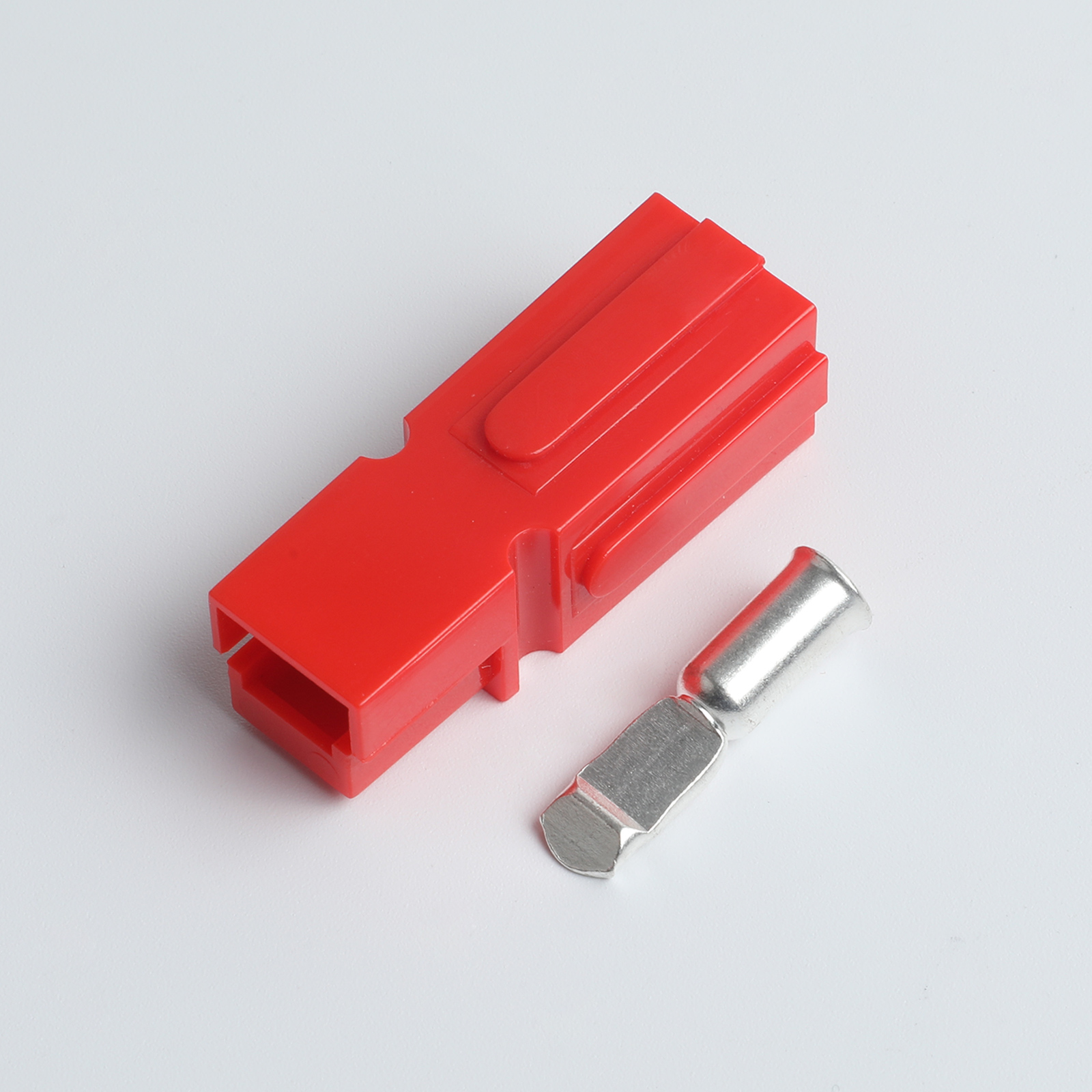

red

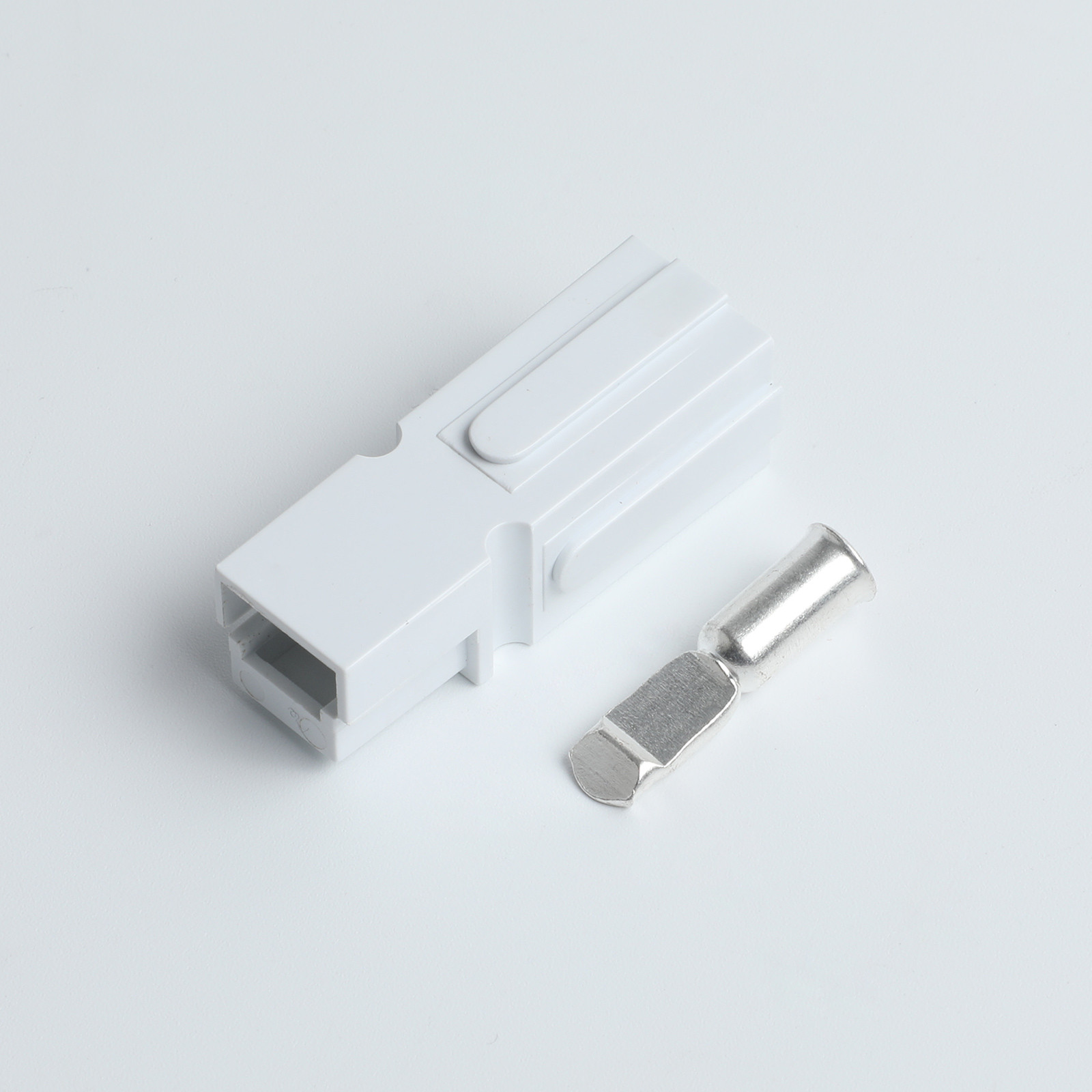

white

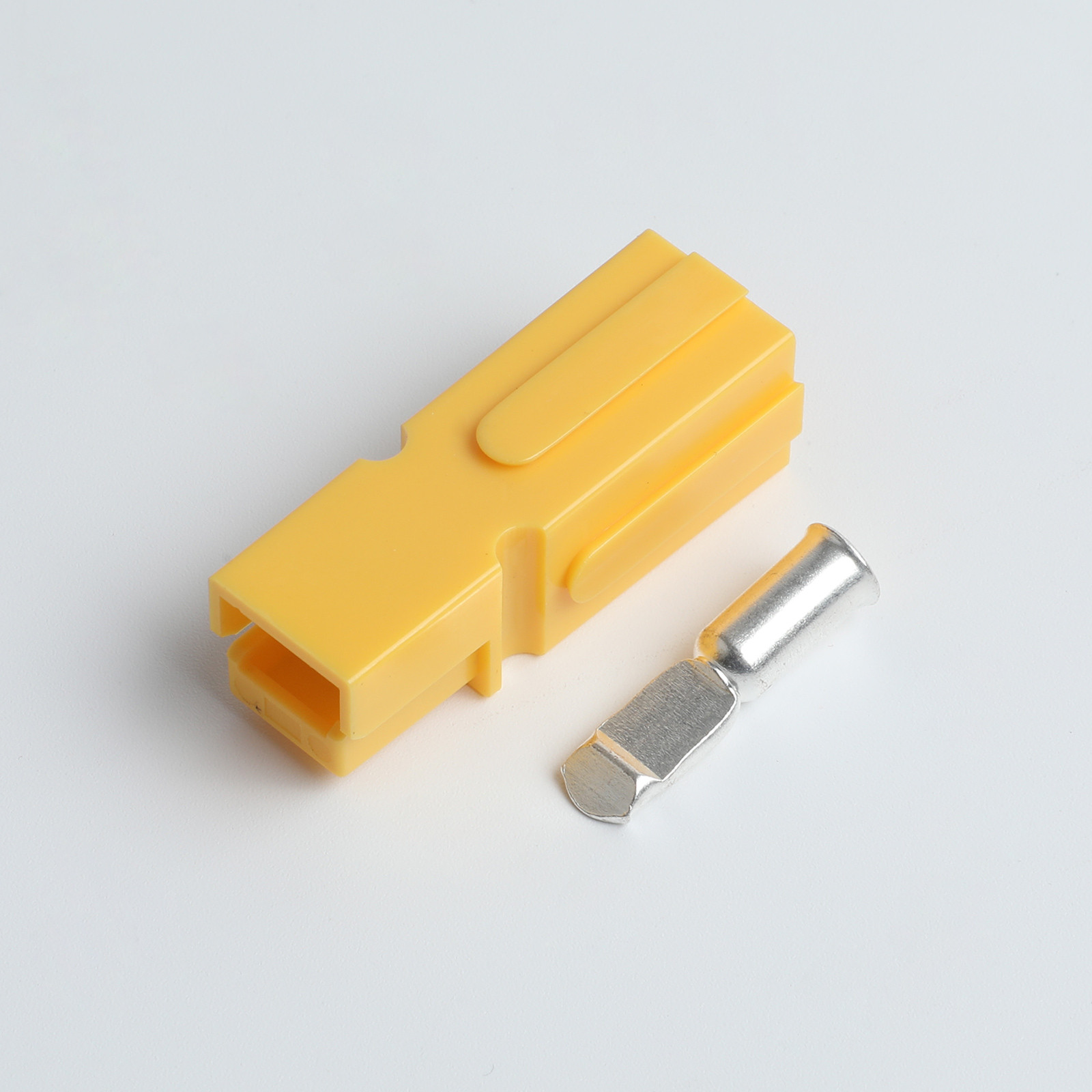

yellow

Features of Single Pole Connectors

Single pole connectors have several features that make them a popular choice for DC electrical connections. Some of these features include:
1.High current capacity: single pole connectors are designed to handle high DC currents, making them suitable for power-hungry devices and applications.
2.Easy to connect and disconnect: These connectors use a spring-loaded latch mechanism that makes it easy to connect and disconnect wires quickly.
3.Tolerance for temperature: single pole connectors are built to withstand a wide range of temperatures, making them suitable for use in harsh environments.
4.Durable construction: These connectors are made from high-quality materials that ensure they are durable and long-lasting.

Advantages of Single Pole Connectors

There are several advantages to using single pole connectors, including:
1.They are reliable: These connectors are designed to provide a reliable and secure electrical connection, which is essential in applications where safety is a concern.
2.They are easy to install: single pole connectors are easy to install, and their modular design makes it easy to expand the system as needed.
3.They are cost-effective: These connectors offer an excellent value for money, making them an attractive option for those on a budget.
4.They are versatile: single pole connectors can be used in a wide range of applications, making them a versatile choice for any project.

Applications of Single Pole Connectors

Single pole connectors are commonly used in the following applications:
1.Solar power systems: These connectors are ideal for solar power systems, as they can handle high current loads and are built to withstand harsh outdoor environments.
2.Electric vehicles: single pole connectors are used in electric vehicles, where they provide a reliable connection for the high voltage systems.
3.Industrial applications: These connectors are used in various industrial applications, including heavy machinery and equipment.

Conclusion

Single pole connectors are an excellent choice for anyone looking for a reliable, easy-to-use electrical connector. With their high current capacity, durability, and versatile design, these connectors are well-suited for a wide range of applications. Whether you're building a solar power system, an electric vehicle, or any other electrical system that requires a high DC voltage connection, single pole connectors are an excellent choice.
