• Solar Panel Connector Photovoltaic Connector With DC 1000V TUV Approved-SY3(1000V) PV-SY3-1(1000V)

Solar Panel Connector Photovoltaic Connector With DC 1000V TUV Approved-SY3(1000V) PV-SY3-1(1000V)

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories.

Compatible with PV cables with different diameters insulation (2.5mm² – 6mm² / 14AWG – 10AWG).

The Solar Panel Wrench: Designed for assembling and disassembling male and female solar panel connector .

Corrosion resistance: The water-resistant hoop on the connection is perfect for sealing water and dust, which is perfect for preventing corrosion.

Easy to install: Quick and easy assembly processing and simple plug removal without the aid of an additional instrument.

Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1000V DC(I EC)1 1000V/1000V DC(UL)2
Rated current 17A( 1.5mm2)
30A(4mm2;6mm2; 12AWG,10AWG)
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

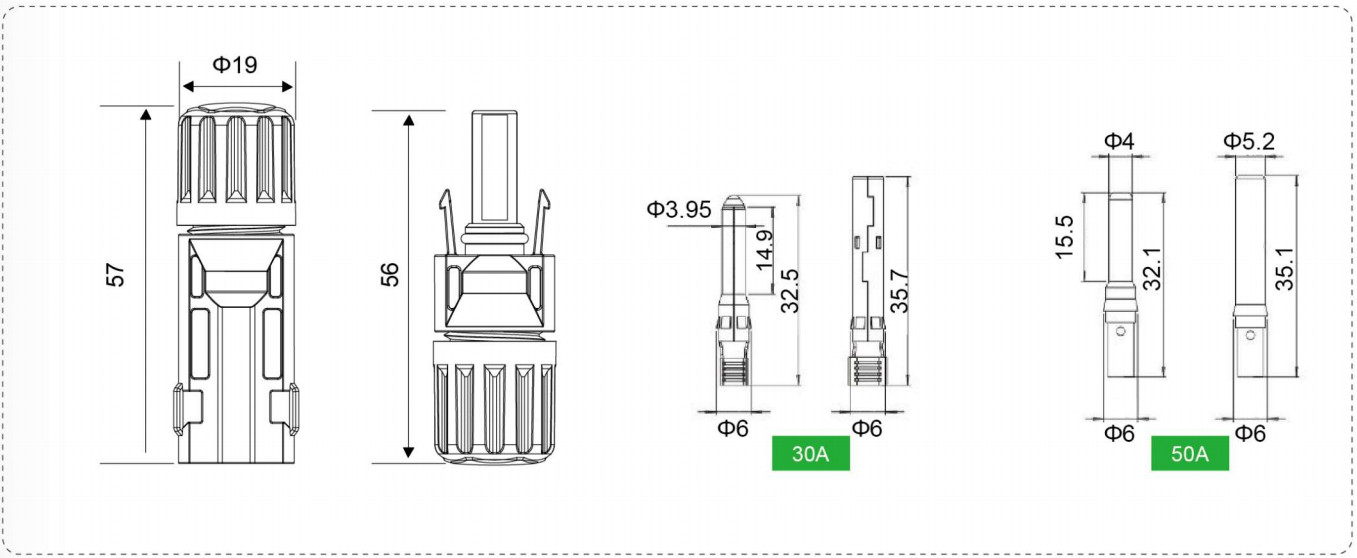

Dimensional Drawing(mm)


Our Advantages

- Efficient and Innovative sample service, ISO9001 quality control system.
- Professional online service team, any mail or message will reply within 24 hours.
- We have a strong team provide wholehearted service to customer at any time.
- We insist on Customer is Supreme, Staff toward Happiness.
- Put the Quality as the first consideration;
- OEM & ODM, customized design/logo/brand and package are acceptable.
- Advanced production equipment, strict quality testing and control system to make sure superior quality.
- Competitive price: we are a professional auto parts manufacturer in China, there is no middleman's profit, and you can get the most competitive price from us.
- Good quality: good quality can be guaranteed, it will help you keep the market share well.
- Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss with trading companies. We will try our best to meet your request.
