• Solar Panel Connector PV-SY04(1000V) PV-SY04-1(1000V)

Solar Panel Connector PV-SY04(1000V) PV-SY04-1(1000V)

Our MC4 PV connectors with hex keys are ideal for photovoltaic solar systems and come in pairs of waterproof male and female connectors. They are compatible with a range of PV cables with different insulation diameters, from 2.5mm² to 6mm². Our connectors feature a specialized Solar Panel Wrench for easy assembly and disassembly, and the water-resistant hoop on the connection is perfect for preventing corrosion caused by water and dust. These connectors are designed for easy installation, requiring no additional tools for simple plug removal. Invest in our MC4 PV connectors for superior conductivity, silver-plated copper contacts, and a versatile modular housing system with voltage coding. Perfect for various applications in your solar panels cable accessories.

Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1000V DC(IEC)1
Rated current 17A( 1.5mm2)
30A(4mm2;6mm2; 12AWG,10AWG)
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

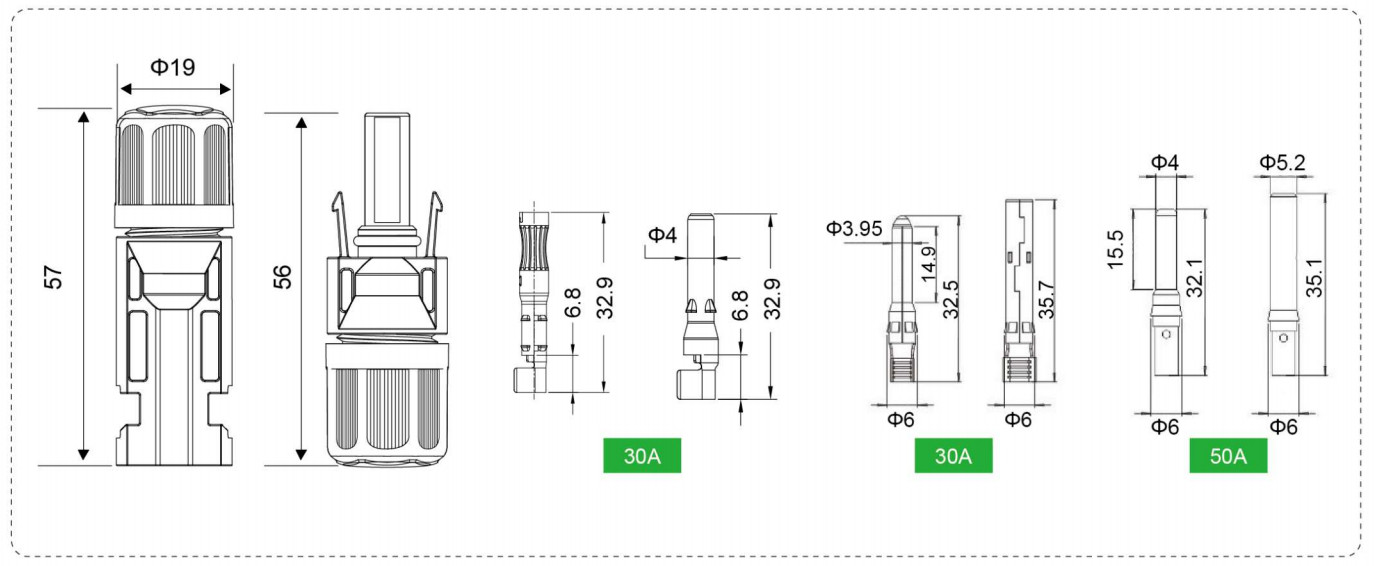

Dimensional Drawing(mm)


What are your company’s advantages?

1. A complete set of our own team to support your selling.

We have outstanding R&D team, strict QC team, exquisite technology team and good service sales team to offer our customer the best service and products. We are both manufacturer and trading company.


2. We have our own factories and have formed a professional production system from material supplying and manufacture to sale, as well as a professional R&D and QC team. We always keep ourselves updated with market trends. We are ready to introduce new technology and service to meet the market needs.


3. Quality assurance.

We have our own brand and attach much significance to quality. The manufacture of running board maintains ISO9001 Quality Management System.
