• Branch Cable PV-SLTY3 Sustainable Solar Panel and Photovoltaic Connectors for Eco-Friendly Power Solutions

Branch Cable PV-SLTY3 Sustainable Solar Panel and Photovoltaic Connectors for Eco-Friendly Power Solutions

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories. Solar Application: solar power IP67 cable

The use of photovoltaic connectors is crucial in solar power applications as they are used to connect solar panels in arrays, thereby providing compatibility between power interfaces from different manufacturers. When choosing solar panel wire connectors, important features to consider are ease of installation, high current carrying capacity, and robustness in extreme environmental conditions. It is important that all solar connector accessories and components exhibit resistance to the harmful environmental effects of solar radiation, moisture, and dust aggression as solar panels operate in exposed extreme conditions. Solar panel connectors come with built-in UV protection and are designed to provide a strong seal as long as all wire gauge specifications are met.

Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1000V DC(IEC)1
Rated current 30A
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

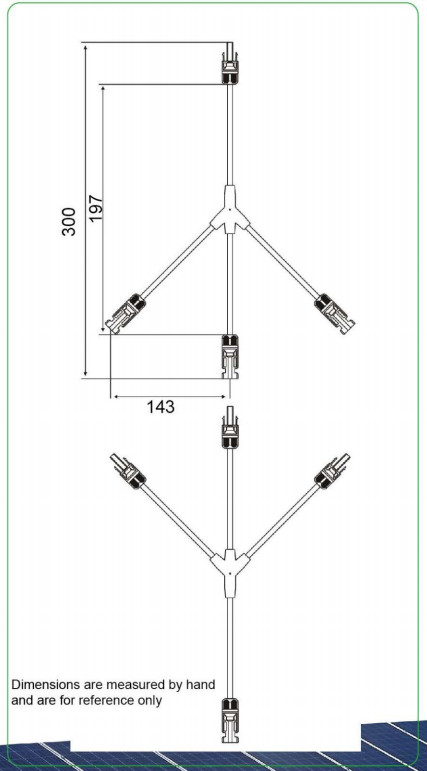

Dimensional Drawing(mm)
