Comprehensive Selection of Solar Panel and Photovoltaic Connectors for Every Application Branch Cable PV-SBY2

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories.

Compatible with PV cables with different diameters insulation (2.5mm² – 6mm² / 14AWG – 10AWG).

The Solar Panel Wrench: Designed for assembling and disassembling male and female solar panel connector .

Corrosion resistance: The water-resistant hoop on the connection is perfect for sealing water and dust, which is perfect for preventing corrosion.

Easy to install: Quick and easy assembly processing and simple plug removal without the aid of an additional instrument.


Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1000V DC(IEC)1
Rated current 30A
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Safetyclass Ⅱ
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PA
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

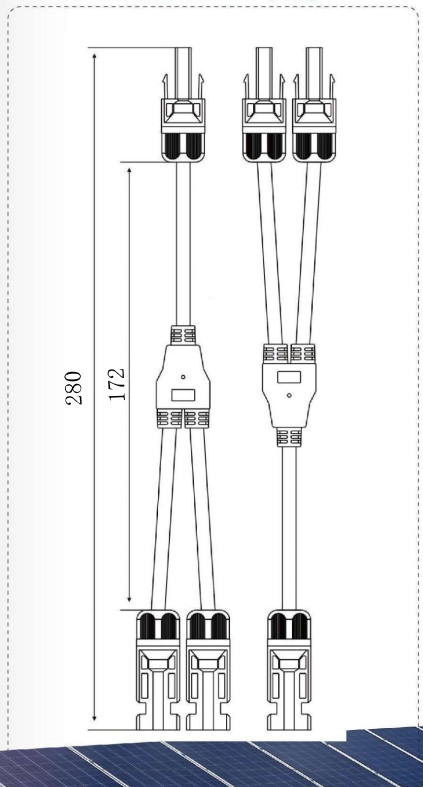

Dimensional Drawing(mm)

detail-14

Our Advantages

-Competitive pricing: Get Solar Panel and Photovoltaic Connectors directly from us at competitive rates without any middleman.

-High-quality products/services: Providing high-quality products or services that exceed customer expectations

-Fast and reliable delivery: Offering fast and reliable delivery

- Excellent customer service: Providing top-notch customer service. This can include offering personalized support, resolving issues promptly, and going above and beyond to meet customer needs.
