• Solar Panel Connectors and Cables Photovoltaic Connectors-SY01(1000V)  PV-SY01-1(1000V)

Solar Panel Connectors and Cables Photovoltaic Connectors-SY01(1000V) PV-SY01-1(1000V)

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories. Solar Application: solar power IP67 cable

The use of photovoltaic connectors is crucial in solar power applications as they are used to connect solar panels in arrays, thereby providing compatibility between power interfaces from different manufacturers. When choosing solar panel wire connectors, important features to consider are ease of installation, high current carrying capacity, and robustness in extreme environmental conditions. It is important that all solar connector accessories and components exhibit resistance to the harmful environmental effects of solar radiation, moisture, and dust aggression as solar panels operate in exposed extreme conditions. Solar panel connectors come with built-in UV protection and are designed to provide a strong seal as long as all wire gauge specifications are met.

Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1000V DC(IEC)1
Rated current 17A( 1.5mm2)
30A(4mm2;6mm2; 12AWG,10AWG)
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

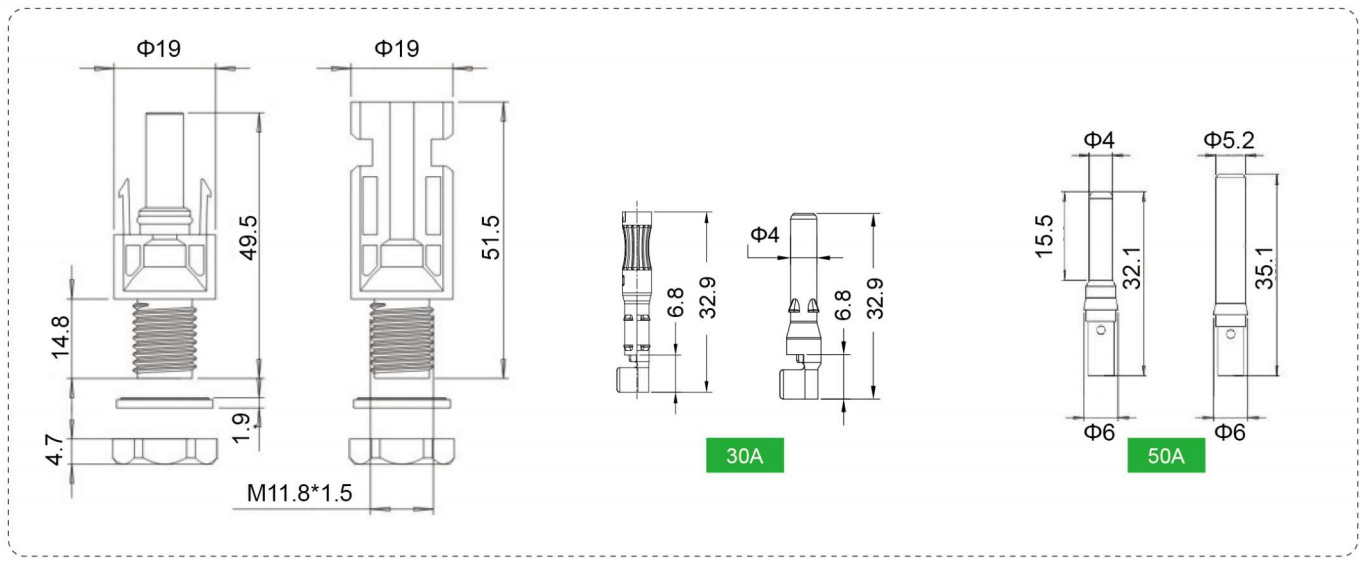

Dimensional Drawing(mm)


Why Choose Us

- About price: The price is negotiable. It can be changed according to your quantity or package.

- About samples: Samples need sample fee, can do freight collect or you pay us the cost in advance.

- About goods: All our goods are made of high-quality environmentally friendly materials.

- About MOQ: We can adjust it according to your requirement.

- About OEM: You can send your own design and Logo. We can open new mold and logo and then send samples to confirm.

- About exchange: Please email me or chat with me at your convenience.

- High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each process of production, from raw material purchase to pack.

- Mold workshop, customized model can be made according to the quantity.

- We offer the best service as we have. Experienced sales team are already to work for you.

- OEM is welcome. Customized logo and color is welcome.

- New virgin material used for each product.

- How can we guarantee quality?
Always a pre-production sample before mass production;
Always 100% Inspection before shipment;

- Can you provide OEM & ODM service?
Yes, OEM&ODM orders are welcome.

- Can I visit your factory?
Warmly welcome to visit our factory!

- Are you factory or trading company?
We are factory and with Export Right. It means factory + trading.
