• PV Plugs Solar Panel Connectors Solar Accessory & Combination-SY05(1500V) PV-SY05-1(1500V)

PV Plugs Solar Panel Connectors Solar Accessory & Combination-SY05(1500V) PV-SY05-1(1500V)

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories.

Compatible with PV cables with different diameters insulation (2.5mm² – 6mm² / 14AWG – 10AWG).

The Solar Panel Wrench: Designed for assembling and disassembling male and female solar panel connector .

Corrosion resistance: The water-resistant hoop on the connection is perfect for sealing water and dust, which is perfect for preventing corrosion.

Easy to install: Quick and easy assembly processing and simple plug removal without the aid of an additional instrument.


Product Detail

Product Tags

Technical Data

Connector system Φ4mm
Rated voltage 1500V DC(IEC)1 1000V/1500V DC(UL)2
Rated current 17A( 1.5mm2)
22A(2.5mm2;14AWG)
30A(4mm2;6mm2; 10mm2; 12AWG,10AWG)
Test voltage 6kV(50HZ,1min.)
Ambient temperature range -40°C..+90°C(IEC) -40°C..+75°C(UL)
Upper limiting temper ature +105°C(IEC)
Degree of protection,mated IP67
unmated IP2X
Comtact resistanceof plug connectors 0.5mΩ
Safetyclass
Contact material Messing,verzinnt Copper Alloy,tin plated
Insulation material PC/PV
Locking system Snap-in
Flame class UL-94-Vo
Salt mist spray test,degree of severity 5 IEC 60068-2-52

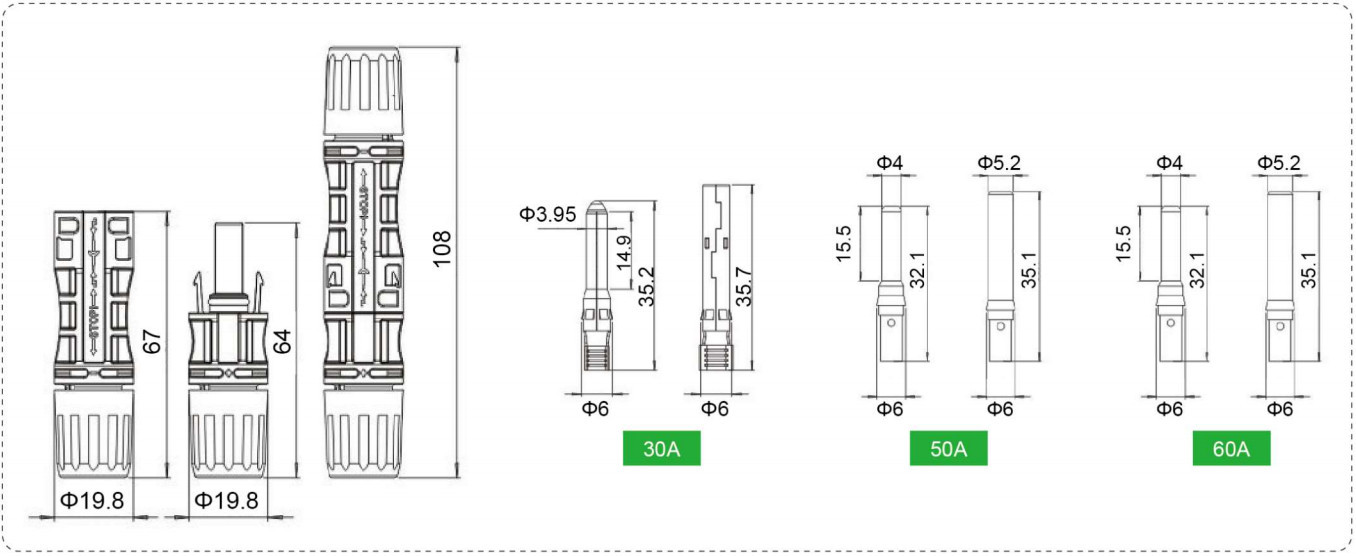

Dimensional Drawing(mm)

detail-5

Response Efficiency

1. How long is your production lead time?

It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

2. When can I get the quotation?

We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.

3. Can you send products to my country?

Sure, we can. If you don't have your own ship forwarder, we can help you.
