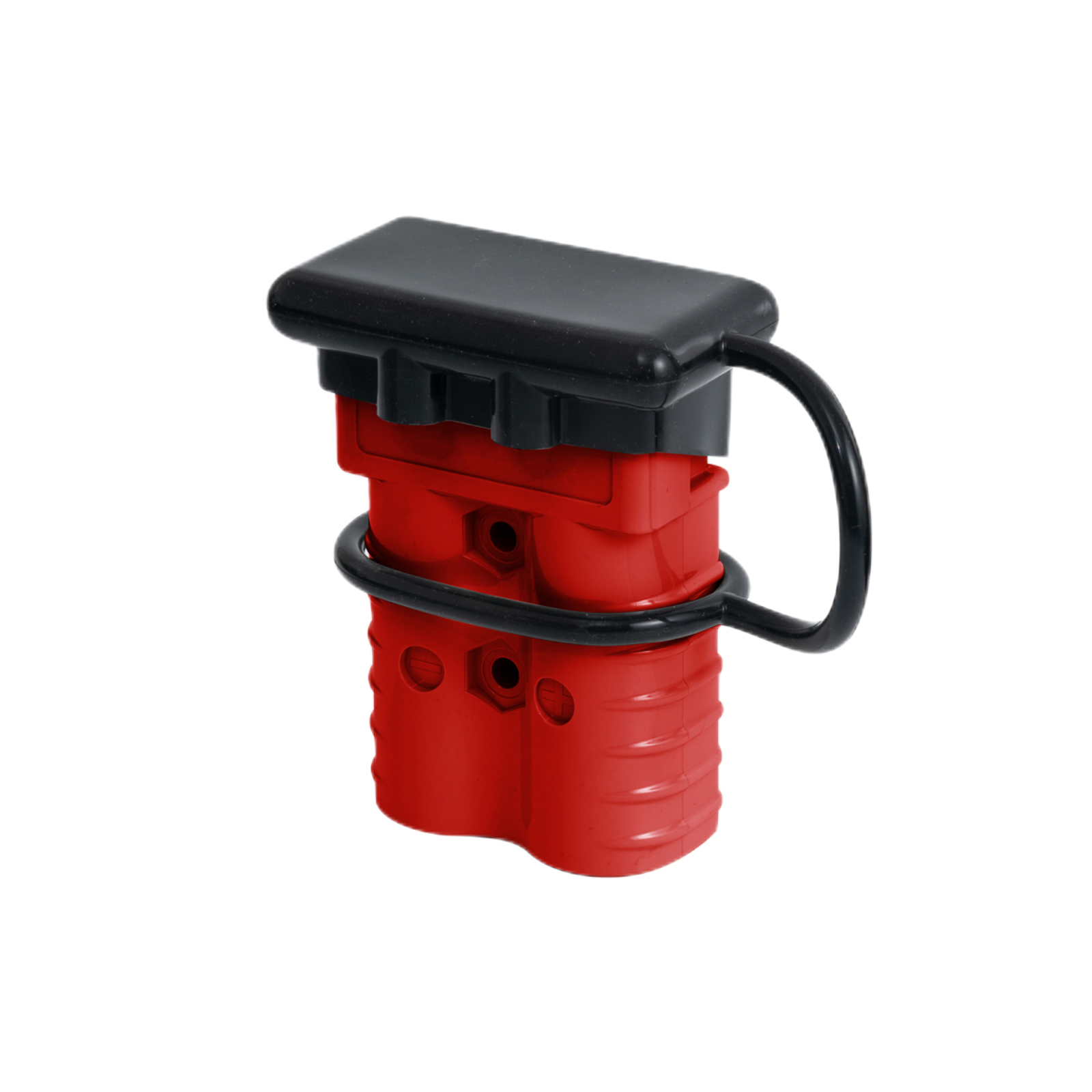

175A/600V Two Pole Power Connector Battery Disconnect Connect Plug

Introducing our 175A Power Products range – a set of connector housings and contacts that feature mechanically keyed, color-coded housings to prevent accidental mating between equipment with different voltages. The genderless design allows for versatility and convenience, while the single-piece housing offers robustness and practicality. These connector housings and contacts are capable of 10,000 connect/disconnect cycles and boast silver-plated contacts that offer longevity when using high power. The range also has flat wiping contacts, allowing minimal contact resistance at high current and a wiping action to clean the contact surface during disconnection, ensuring better conductivity and longer life. These products are made from rugged materials, and assembly is fast and easy. They are available in 50A, 120A, 175A, and 350A versions and have an operating temperature range of -20°C to +105°C. Finally, they have a flammability rating of UL94 V-0, offering peace of mind to users. Choose our 175A Power Products range for efficient, reliable and safe connections.

Send email to us

Product Detail

Product Tags

Spectifications

Current Rating (Amps)	175A
Voltage Rating	600V
Wire Size Range	1/0,2#, 4#, 6#
Operating Temperature Range	-4 to 221°F
Material	Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs, Rubber
Number of Positions	2
Mounting Type	Feed Through
Body Orientation	Straight
Series	SY175
Housing Color	Gray, Red, Blue

Descriptions

Built-in stainless steel spring makes it possible to connect or disconnect over 10000 times.

Copper terminal is plated with silver to minimize electricity resistance and provide strong electrical conductivity to support stable voltage and current.

Prevents dust and dirt from entering the mating interface of the connector when unmated.

Mechanical keys ensure connectors will only mate with connectors of the same color. The striped texturing on both sides of the plugs makes it easier and helpful to grip.

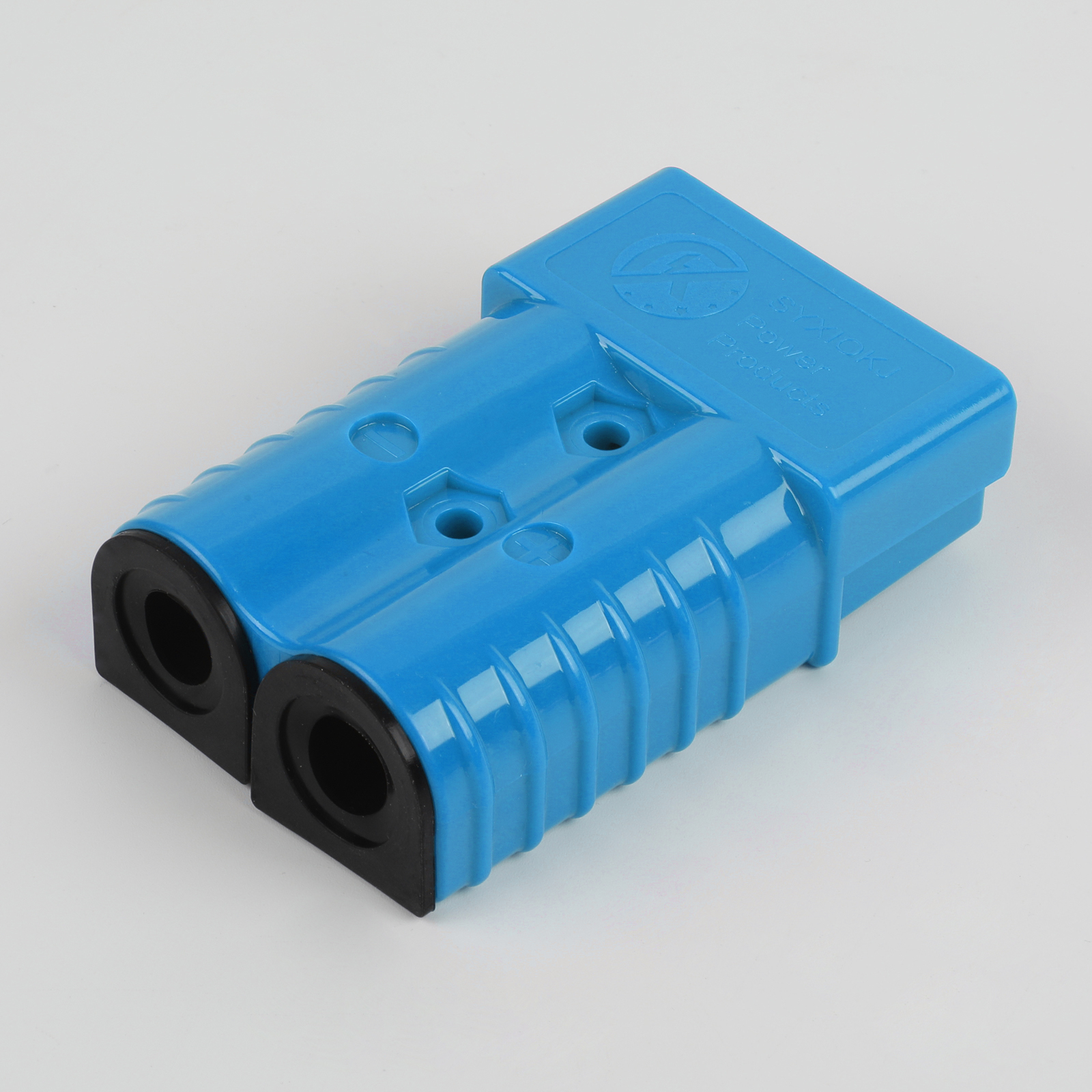

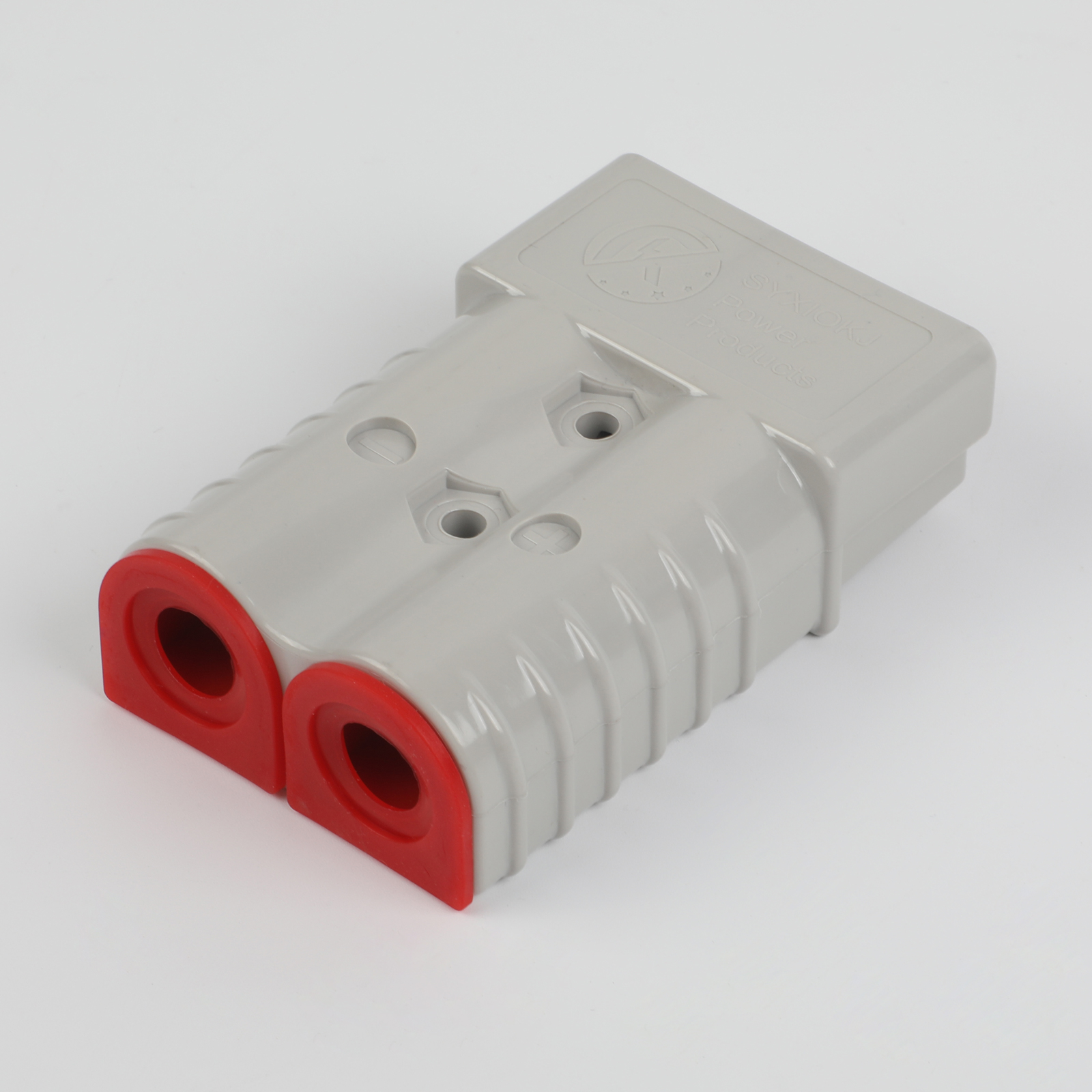

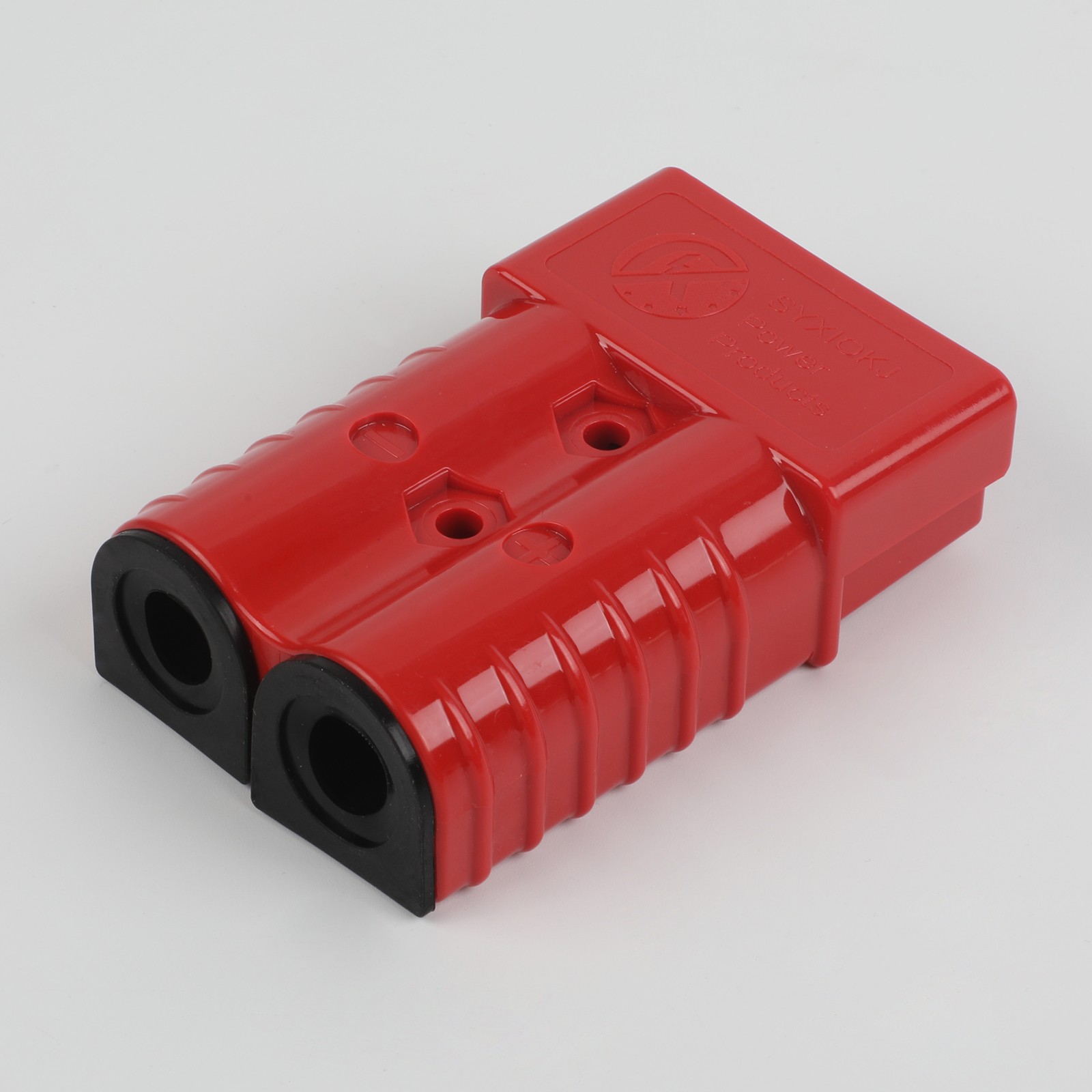

Housing Color

Genderless design mates with itself，which you just flip one 180 degrees and they will mate to each other. Mechanical keys are color-coded, which ensure connectors will only mate with connectors of the same color.
