50A/600V Two Pole Power Connector Battery Disconnect Connect

Multi-pole connectors, also known as power connectors, are highly versatile, durable, and user-friendly solutions that can be found in a variety of industries. In electronics, they are commonly employed for high current and voltage circuits, as well as for establishing a secure link between power sources and tools or equipment. Meanwhile, in the automotive sector, these connectors are integrated into key components like battery connectors, alternators, and starters. They serve to power the engine and optimize electrical system function, ensuring peak performance and reliability. Given their outstanding performance and practicality, these connectors are often preferred for interface systems and power distribution. The type 50A two pole connectors are mainly used in battery disconnect connect.

Send email to us

Product Detail

Product Tags

Spectifications

Current	50A
Voltage	600V
Wire Size Range	6-16 AWG
Operating Temperature Range	-4 to 221°F
Material	Polycarbonate, Copper with Sliver Plated, Stainless Steel Springs, Rubber

Descriptions

Built-in stainless steel spring makes it possible to connect or disconnect over 10000 times.

Copper terminal is plated with silver to minimize electricity resistance and provide strong electrical conductivity to support stable voltage and current.

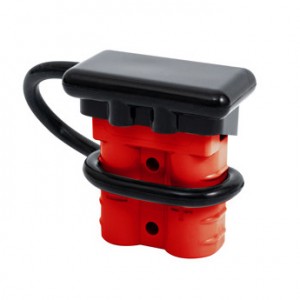

Prevents dust and dirt from entering the mating interface of the connector when unmated.

Mechanical keys ensure connectors will only mate with connectors of the same color. The striped texturing on both sides of the plugs makes it easier and helpful to grip.

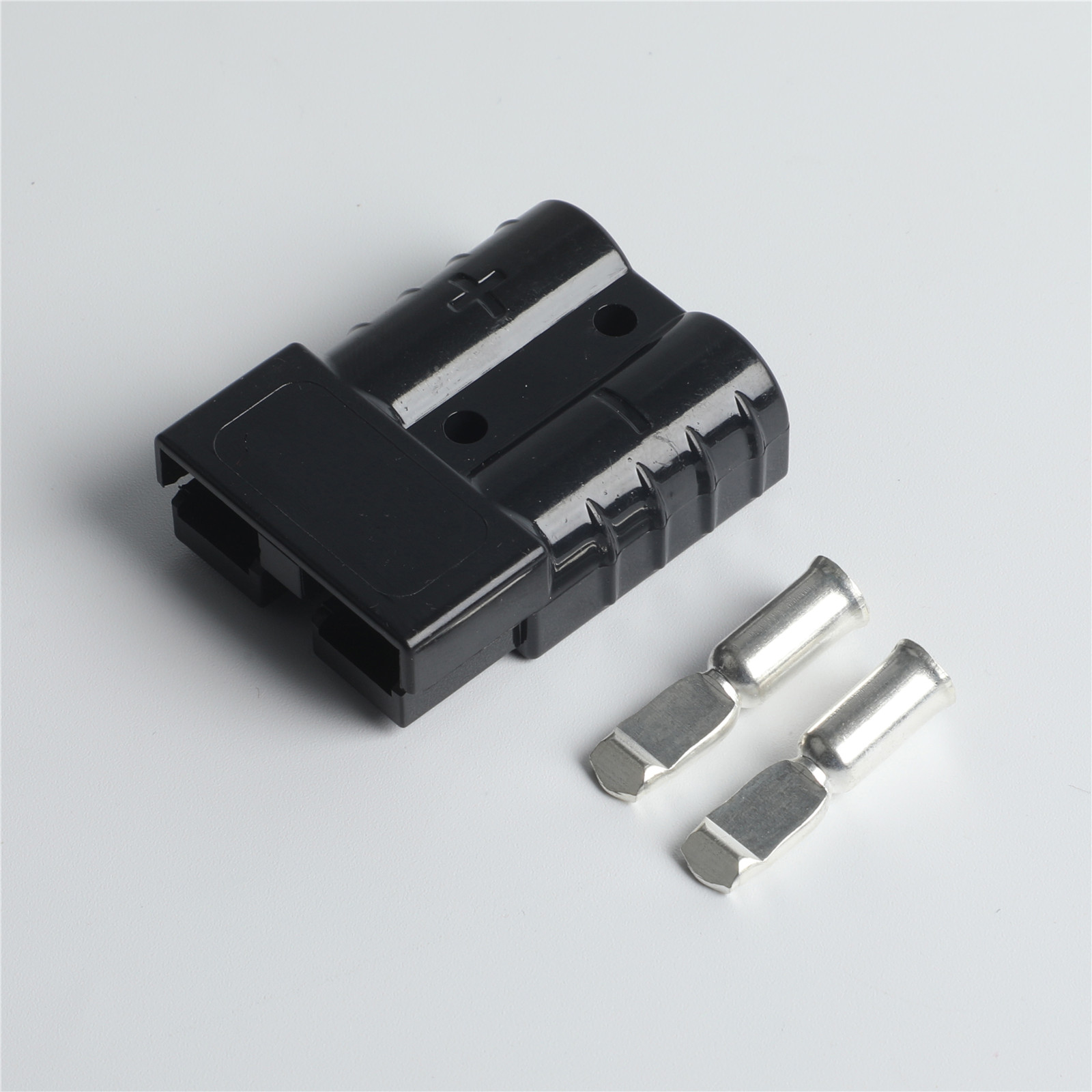

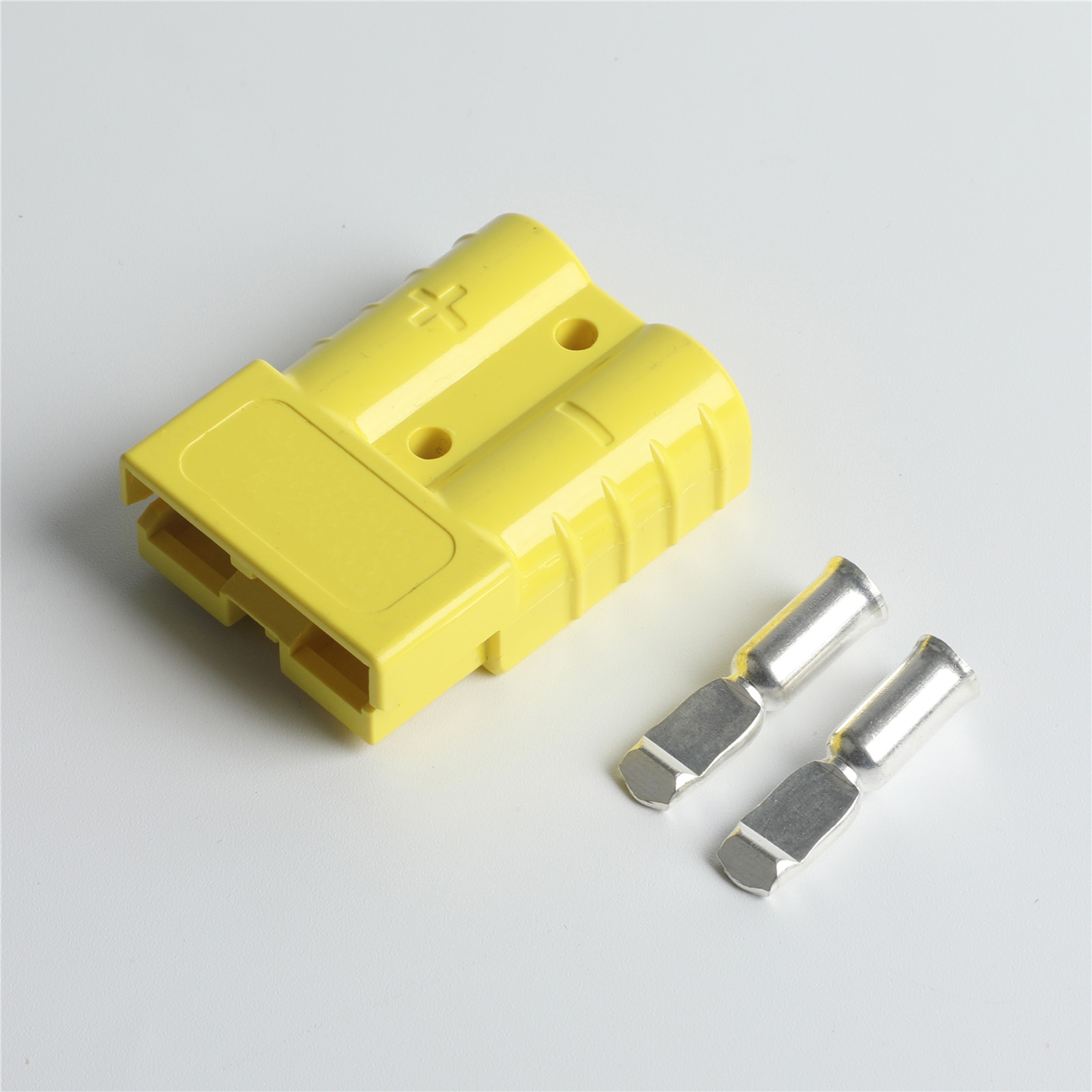

Housing Color

Genderless design mates with itself，which you just flip one 180 degrees and they will mate to each other. Mechanical keys are color-coded, which ensure connectors will only mate with connectors of the same color.
