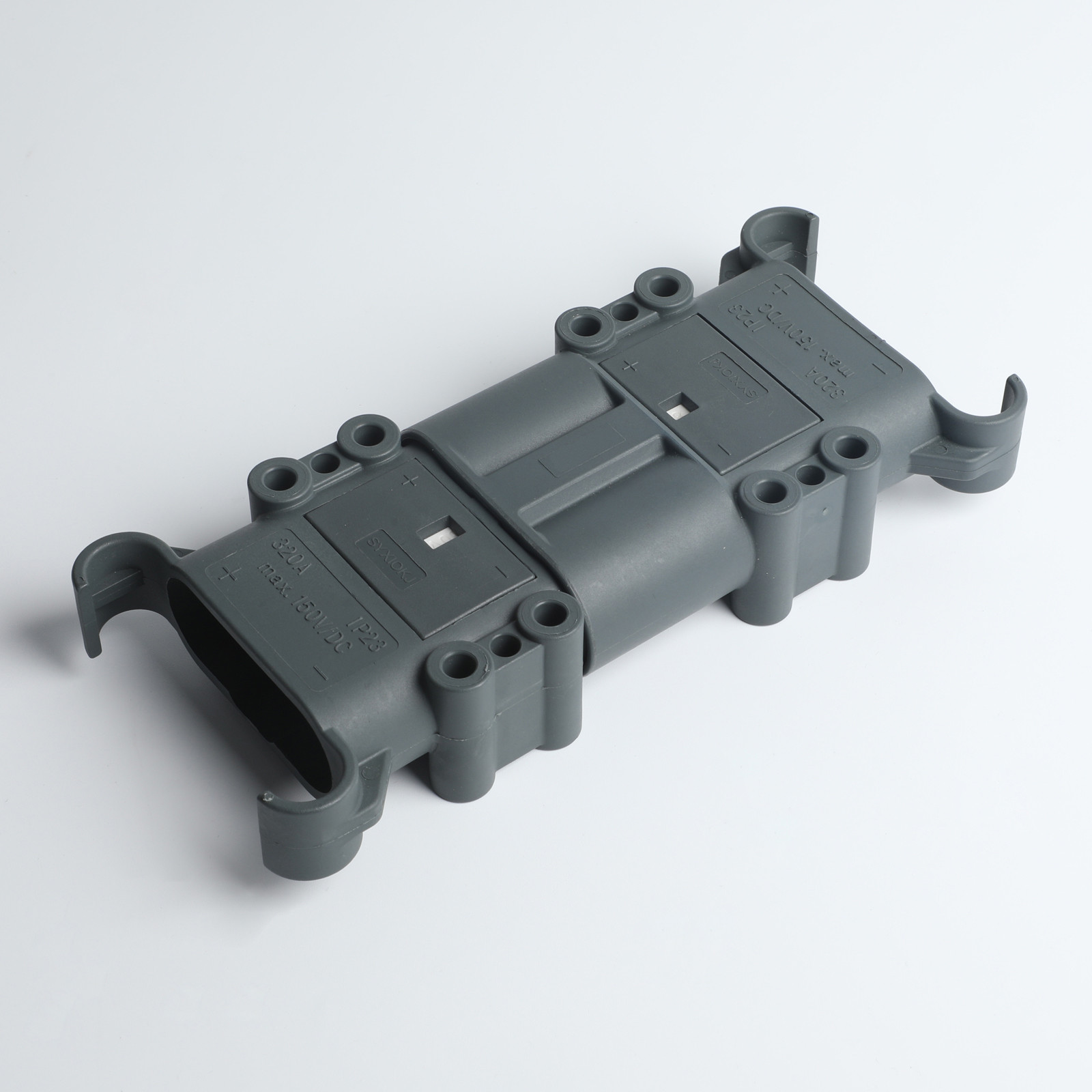

A Durable Solution for Heavy-Duty Machinery 320A Male Female Industrial Connector

Essential for electromobility and other industrial applications, the plug and socket connector system offers impeccable safety and dependability, making it a popular choice for electric vehicles, battery systems, and charging stations. Featuring male and female variations, the plug system’s male plug and corresponding female socket, equipped with three contact points for each, is designed with security in mind, boasting a robust electrical connection that can handle a significant amount of stress and vibrations. Offering high power capacity of up to 850 volts and 400 amps, the plug and socket system provides seamless transmission ideal for energy-requiring applications, such as those pertaining to electric vehicles. By incorporating ergonomic handles, the system mitigates the risk of accidental contact, hence reducing the likelihood of equipment failure. The plug and socket connector system is an essential component across several industries, including automotive and industrial automation, where safety, durability, and high-power capacity are crucial.

Product Detail

Product Tags


• Pin-Hole Contact Design
It produces lower conatct resistance when strong current pass through. Over wiping design cleans the mating surface when mating and unmating.

• Modular Housing
The voltage coding bar makes it easier to identify dfferent voltage conenctor and to avoid mis-mate.

• Pure Copper Conatct with Silver Plated
It is equipped with excellent performance.

• Compatibility
Compatible with products of the same type of manufacturers to meet multiple needs.



Rated Current(Ampers) 320A
Voltage Ratings(Volts) 150V
Power Contcts(mm²) 50-95mm²
Auxiliary Contacts(mm²) 0.5-2.5mm²
Insulation Withstand(V) 2200V
AVg. Insertion Removal Force (N) 53-67N
IP Grade IP23
Contact Material Copper with Silver plated
Housing PA66




Male-female plugs are commonly used in the following applications:
1.Automotive industry: These plugs are frequently used in vehicles to connect the battery to the engine, and in electric vehicles to connect the powertrain to the battery.
2.Marine industry: These plugs are commonly used on boats and other marine vessels to connect the electric motor to the battery.
3.Industrial applications: These plugs are used in various industrial applications, such as power generation, welding, and robotics.
