• Pin-Hole Contact Design
It produces lower conatct resistance when strong current pass through. Over wiping design cleans the mating surface when mating and unmating.
• Modular Housing
The voltage coding bar makes it easier to identify dfferent voltage conenctor and to avoid mis-mate.
• Pure Copper Conatct with Silver Plated
It is equipped with excellent performance.
• Compatibility
Compatible with products of the same type of manufacturers to meet multiple needs.
Rated Current(Ampers) | 160A |
Voltage Ratings(Volts) | 150V |
Power Contcts(mm²) | 35-50mm² |
Auxiliary Contacts(mm²) | 0.5-2.5mm² |
Insulation Withstand(V) | 2200V |
AVg. Insertion Removal Force (N) | 53-67N |
IP Grade | IP23 |
Contact Material | Copper with Silver plated |
Housing | PA66 |

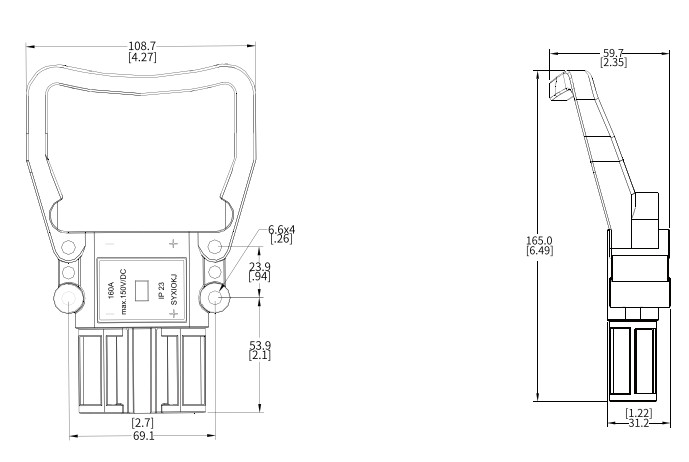

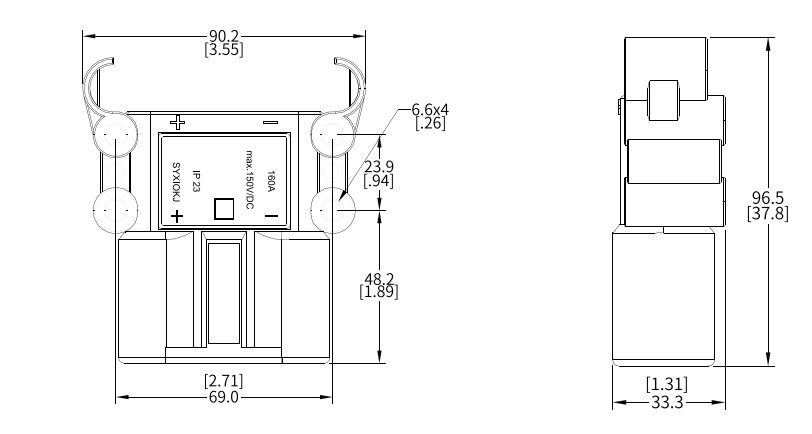

Please refer to the following data about the dimensions of housing.
Male-female plugs are commonly used in the following applications:
1.Automotive industry: These plugs are frequently used in vehicles to connect the battery to the engine, and in electric vehicles to connect the powertrain to the battery.
2.Marine industry: REMA plugs are commonly used on boats and other marine vessels to connect the electric motor to the battery.
3.Industrial applications: These plugs are used in various industrial applications, such as power generation, welding, and robotics.
