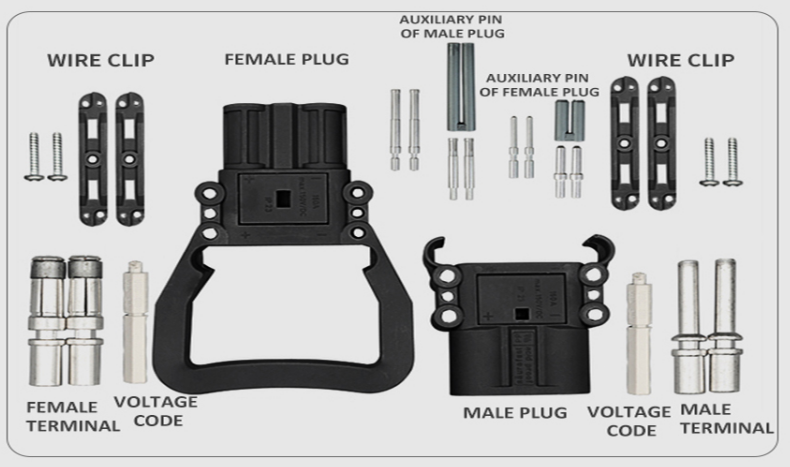

REMA launches new male and female plug DC connectors for forklift power supplies for high current battery charging. These industrial plugs are rated at 80A, 160A and 320A, providing efficient and reliable charging options for electric vehicles, electric forklifts, stackers, electric sightseeing vehicles, UPS and other high-current circuit connections. REMA connectors are designed with separate male and female components, with the female connector equipped with a convenient handle for easy operation and connection. The rated voltage of these connectors is 150V, ensuring safe and stable power transmission. These connectors are made of silver-plated copper for enhanced conductivity and durability. The insulation material used is PP, providing extra protection and durability. The protection grade of REMA connector is IP23 and the flame retardant grade is UL94V-0, ensuring the highest safety standards. AC/DC interface types provide a variety of usage options to meet different charging needs. These connectors feature a plug with two main terminals and a signal terminal, ensuring an efficient and safe connection.
REMA male and female DC plug connectors for forklift power supplies stand out for their outstanding performance and reliability. The model number REMA indicates that these connectors are manufactured in mainland China, ensuring the highest quality production. The products have necessary certifications such as CE and RoHS to ensure compliance with international safety and environmental standards. The connector is designed with great attention to detail, and the terminal material is silver-plated copper, which provides excellent conductivity and minimizes energy loss during charging. The connector can withstand a wide operating temperature range of -20°C to 105°C, making it suitable for a variety of environmental conditions. The UL94V-0 flame retardant rating further ensures these connectors are safe to use even in potentially hazardous situations.
REMA forklift power male and female DC plug connectors are designed for high current circuit connections. These connectors are rated at 80A, 160A, and 320A to meet heavy-duty charging requirements. The 150V voltage rating ensures these connectors can safely deliver power to electric vehicles, electric forklifts, stackers, electric sightseeing vehicles, UPS systems and other high-current applications. Multiple cabling options provide flexibility in selecting the appropriate connector for specific cable sizes. The 80A connector supports cables with a terminal diameter of 8mm and a cable size of 25mm2 (4AWG). The 160A connector accommodates cables with a terminal diameter of 11mm and a cable size range of 35-50mm2 (1-3AWG). The 320A connector is designed for cables with a 13mm contact diameter and a cable size range of 50-70mm2 (1/0-2/0 AWG).
REMA prioritizes the safety and durability of its products. The connectors are made of silver-plated copper, a highly efficient conductor that ensures maximum power transfer. The insulation material used is PP, which provides excellent protection against external factors and extends the life of the connector. Rated IP23, these connectors provide reliable protection against dust and water and are suitable for indoor and outdoor use. The UL94V-0 flame retardant rating ensures that the connector has a high degree of fire resistance, giving users peace of mind during operation.
In summary, REMA’s new male and female forklift power plug DC connectors provide a reliable and efficient solution for high-current battery charging. These connectors are rated from 80A to 320A to meet the heavy-duty charging requirements of electric vehicles, forklifts, stackers, sightseeing vehicles and UPS systems. The connector is designed with independent male and female components, and the female connector has a handle for easy use. These connectors are made of silver-plated copper to ensure maximum conductivity and longevity. The rated voltage of the connector is 150V, ensuring safe and stable power transmission. REMA connectors comply with the highest safety standards, with a protection rating of IP23 and a flame retardant rating of UL94V-0. These connectors are suitable for a variety of applications and are ideal for reliable high-current circuit connections.
Post time: Sep-17-2023
