Quality Solar Panel and Photovoltaic Connectors at Affordable Prices PV-SY3

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories.

Compatible with PV cables with different diameters insulation (2.5mm² – 6mm² / 14AWG – 10AWG).

The Solar Panel Wrench: Designed for assembling and disassembling male and female solar panel connector .

Corrosion resistance: The water-resistant hoop on the connection is perfect for sealing water and dust, which is perfect for preventing corrosion.

Easy to install: Quick and easy assembly processing and simple plug removal without the aid of an additional instrument.

Send email to us

Product Detail

Product Tags

Technical Data

Insulation Material	PPO
Contact Material	Copper,Tin plated
Suitable Current	50A
Rated Voltage	1000V (TUV) 600V (UL)
Test Voltage	6KV(TUV50H 1min)
Contact Resistance	<0.5mΩ
Degree Of Protection	IP67
Ambient Temperature Range	-40℃〜+85C
Flame Class	UL 94-VO
Safety Class	Ⅱ
Pin Dimensions	Φ04mm

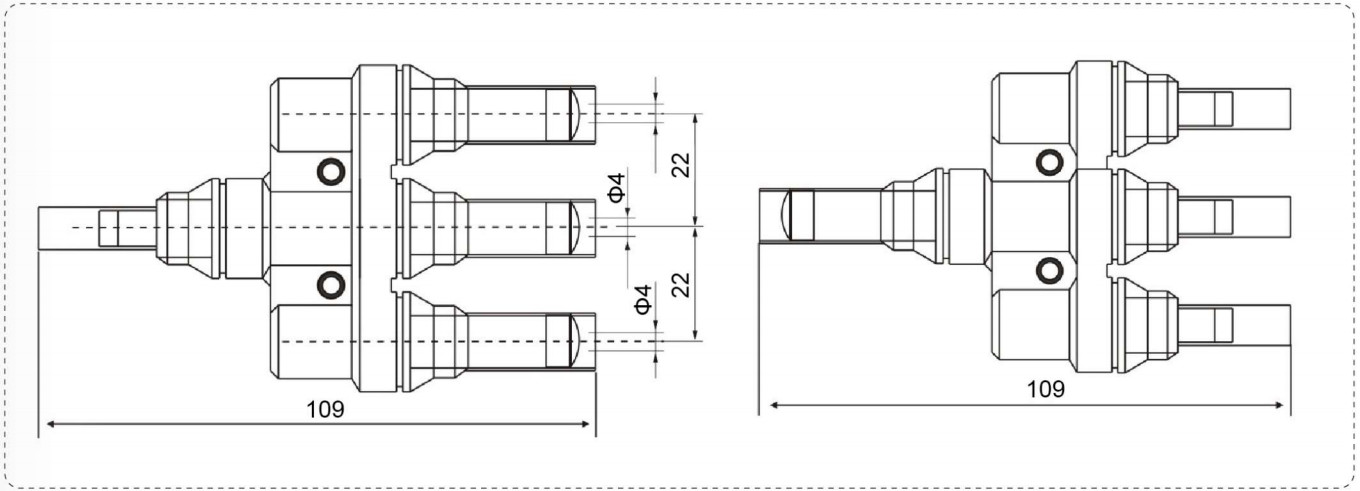

Dimensional Drawing(mm)

Our Advantages

-We can provide professional solutions with tailored advice and support.
-OEM & ODM, customized design/logo/brand and package are acceptable.
-Competitive price: we are a professional auto parts manufacturer in China, there is no middleman's profit,
and you can get the most competitive price from us.
-Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss
with trading companies. We will try our best to meet your request.
