• Advanced Solar Panel and Photovoltaic Connectors for Solar Energy Systems PV-SY2

Advanced Solar Panel and Photovoltaic Connectors for Solar Energy Systems PV-SY2

Pairs PV Connector, MC4, Photovoltaic Solar Connector with Hex Keys, Waterproof Male + Female Solar Power Connectors for Solar Panels Cable Accessories.

Compatible with PV cables with different diameters insulation (2.5mm² – 6mm² / 14AWG – 10AWG).

The Solar Panel Wrench: Designed for assembling and disassembling male and female solar panel connector .

Corrosion resistance: The water-resistant hoop on the connection is perfect for sealing water and dust, which is perfect for preventing corrosion.

Easy to install: Quick and easy assembly processing and simple plug removal without the aid of an additional instrument.


Product Detail

Product Tags

Technical Data

Insulation Material PPO
Contact Material Copper,Tin plated
Suitable Current 50A
Rated Voltage 1000V (TUV) 600V (UL)
Test Voltage 6KV(TUV50H 1min)
Contact Resistance <0.5mΩ
Degree Of Protection IP67
Ambient Temperature Range -40℃〜+85C
Flame Class UL 94-VO
Safety Class
Pin Dimensions Φ04mm

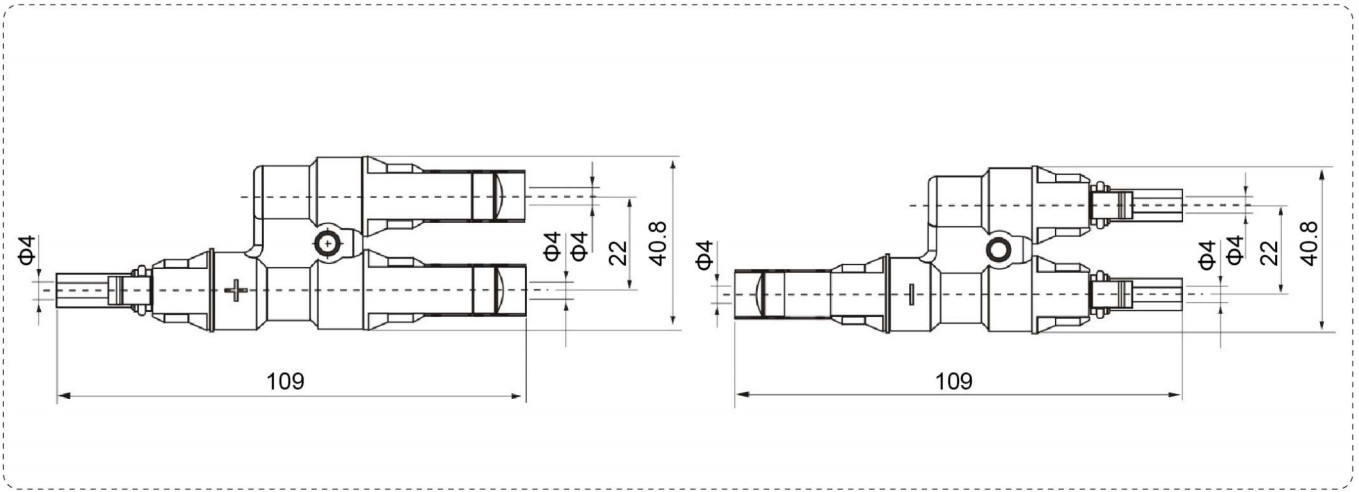

Dimensional Drawing(mm)
